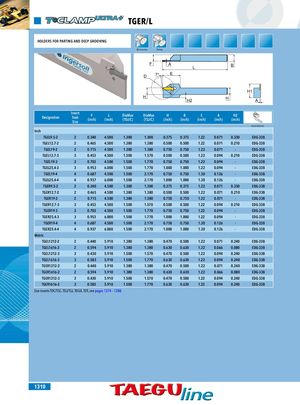

TGER/L HOLDERS FOR PARTING AND DEEP GROOVING OD Grooving Parting D A2 F A L A1B D 7° E BH L H1 150° H H2 H RAight hand shown Designation InsertSeatSizeF(inch) L(inch) DiaMax(TDJ/C)DiaMax H B E A H2(TSJ/C)(inch)(inch)(inch)(inch)(inch) Insert Extractor Inch TGEL9.5-2 2 0.340 4.500 1.300 1.300 0.375 0.375 1.22 0.071 0.330 EDG-33B TGEL12.7-2 2 0.465 4.500 1.380 1.380 0.500 0.500 1.22 0.071 0.210 EDG-33B TGEL19-2 2 0.715 4.500 1.380 1.380 0.750 0.750 1.22 0.071 - EDG-33B TGEL12.7-3 3 0.453 4.500 1.500 1.570 0.500 0.500 1.22 0.094 0.210 EDG-33B TGEL19-3 3 0.703 4.500 1.500 1.770 0.750 0.750 1.22 0.094 - EDG-33B TGEL25.4-3 3 0.953 6.000 1.500 1.770 1.000 1.000 1.22 0.094 - EDG-33B TGEL19-4 4 0.687 4.500 1.500 2.170 0.750 0.750 1.30 0.126 - EDG-33B TGEL25.4-4 4 0.937 6.000 1.500 2.170 1.000 1.000 1.30 0.126 - EDG-33B TGER9.5-2 2 0.340 4.500 1.300 1.300 0.375 0.375 1.22 0.071 0.330 EDG-33B TGER12.7-2 2 0.465 4.500 1.380 1.380 0.500 0.500 1.22 0.071 0.210 EDG-33B TGER19-2 2 0.715 4.500 1.380 1.380 0.750 0.750 1.22 0.071 - EDG-33B TGER12.7-3 3 0.453 4.500 1.500 1.570 0.500 0.500 1.22 0.094 0.210 EDG-33B TGER19-3 3 0.703 4.500 1.500 1.770 0.750 0.750 1.22 0.094 - EDG-33B TGER25.4-3 3 0.953 6.000 1.500 1.770 1.000 1.000 1.22 0.094 - EDG-33B TGER19-4 4 0.687 4.500 1.500 2.170 0.750 0.750 1.30 0.126 - EDG-33B TGER25.4-4 4 0.937 6.000 1.500 2.170 1.000 1.000 1.30 0.126 - EDG-33B Metric TGEL1212-2 2 0.440 5.910 1.380 1.380 0.470 0.500 1.22 0.071 0.240 EDG-33B TGEL1616-2 2 0.594 5.910 1.380 1.380 0.630 0.630 1.22 0.066 0.080 EDG-33B TGEL1212-3 3 0.430 5.910 1.500 1.570 0.470 0.500 1.22 0.094 0.240 EDG-33B TGEL1616-3 3 0.583 5.910 1.500 1.770 0.630 0.630 1.22 0.094 0.240 EDG-33B TGER1212-2 2 0.440 5.910 1.380 1.380 0.470 0.500 1.22 0.071 0.240 EDG-33B TGER1616-2 2 0.594 5.910 1.380 1.380 0.630 0.630 1.22 0.066 0.080 EDG-33B TGER1212-3 3 0.430 5.910 1.500 1.570 0.470 0.500 1.22 0.094 0.240 EDG-33B TGER1616-3 3 0.583 5.910 1.500 1.770 0.630 0.630 1.22 0.094 0.240 EDG-33B Use inserts TDC/TSC, TDJ/TSJ, TDUX, TDT, see pages 1274 - 1288. 1310
