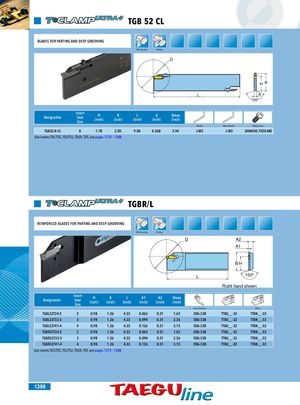

TGB 52 CL BLADES FOR PARTING AND DEEP GROOVING OD Grooving Parting D H B L A 150° Designation InsertSeatSizeH(inch) B(inch) L(inch) A(inch) Dmax(inch) Wrench Allen Wrench Clamp Screw TGB52-8-CL 8 1.78 2.05 9.84 0.268 3.94 L-W5 L-W3 SHM4X0.7X20-MO Use inserts TDC/TSC, TDJ/TSJ, TDUX, TDT, see pages 1274 - 1288. TGBR/L REINFORCED BLADES FOR PARTING AND DEEP GROOVING OD Grooving Parting D A2 A1 BH L 150° Right hand shown Designation InsertSeatSizeH(inch) B(inch) L(inch) A1(inch) A2(inch) Dmax(inch) Insert Extractor Block TGBL32T24-2 2 0.98 1.26 4.33 0.063 0.31 1.65 EDG-33B TTBU__-32 TTBN__-32 TGBL32T33-3 3 0.98 1.26 4.33 0.094 0.31 2.36 EDG-33B TTBU__-32 TTBN__-32 TGBL32T41-4 4 0.98 1.26 4.33 0.126 0.31 3.15 EDG-33B TTBU__-32 TTBN__-32 TGBR32T24-2 2 0.98 1.26 4.33 0.063 0.31 1.65 EDG-33B TTBU__-32 TTBN__-32 TGBR32T33-3 3 0.98 1.26 4.33 0.094 0.31 2.36 EDG-33B TTBU__-32 TTBN__-32 TGBR32T41-4 4 0.98 1.26 4.33 0.126 0.31 3.15 EDG-33B TTBU__-32 TTBN__-32 Use inserts TDC/TSC, TDJ/TSJ, TDUX, TDT, see pages 1274 - 1288. 1306
