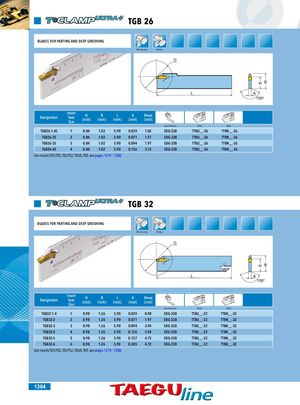

TGB 26 BLADES FOR PARTING AND DEEP GROOVING OD Grooving Parting D H B L A 150° Designation InsertSeatSizeH(inch)B(inch) L(inch) A(inch) Dmax(inch) Insert Extractor Block Block TGB26-1.4S 1 0.84 1.02 5.90 0.039 1.02 EDG-23B TTBU__-26 TTBN__-26 TGB26-2S 2 0.84 1.02 5.90 0.071 1.57 EDG-33B TTBU__-26 TTBN__-26 TGB26-3S 3 0.84 1.02 5.90 0.094 1.97 EDG-33B TTBU__-26 TTBN__-26 TGB26-4S 4 0.84 1.02 5.90 0.126 3.15 EDG-33B TTBU__-26 TTBN__-26 Use inserts TDC/TSC, TDJ/TSJ, TDUX, TDT, see pages 1274 - 1288. TGB 32 BLADES FOR PARTING AND DEEP GROOVING OD Grooving Parting D H B L A 150° Designation InsertSeatSizeH(inch)B(inch) L(inch) A(inch) Dmax(inch) Insert Extractor Block Block TGB32-1.4 1 0.98 1.26 5.90 0.039 0.98 EDG-33B TTBU__-32 TTBN__-32 TGB32-2 2 0.98 1.26 5.90 0.071 1.97 EDG-33B TTBU__-32 TTBN__-32 TGB32-3 3 0.98 1.26 5.90 0.094 3.94 EDG-33B TTBU__-32 TTBN__-32 TGB32-4 4 0.98 1.26 5.90 0.126 3.94 EDG-33B TTBU__-32 TTBN__-32 TGB32-5 5 0.98 1.26 5.90 0.157 4.72 EDG-33B TTBU__-32 TTBN__-32 TGB32-6 6 0.98 1.26 5.90 0.205 4.72 EDG-33B TTBU__-32 TTBN__-32 Use inserts TDC/TSC, TDJ/TSJ, TDUX, TDT, see pages 1274 - 1288. 1304
