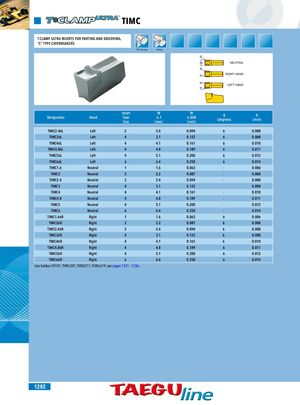

TIMC T-CLAMP ULTRA INSERTS FOR PARTING AND GROOVING, "C" TYPE CHIPBREAKERS OD Grooving Parting R W NEUTRAL R K° RIGHT HAND K° LEFT HAND R Designation Hand InsertSeatSize W±.1(mm) W±.004(inch) K(degrees) R(inch) TIMC2.46L Left 2 2.4 0.094 6 0.008 TIMC36L Left 4 3.1 0.122 6 0.008 TIMC46L Left 4 4.1 0.161 6 0.010 TIMC4.86L Left 4 4.8 0.189 6 0.011 TIMC56L Left 4 5.1 0.200 6 0.012 TIMC66L Left 6 6.4 0.250 6 0.014 TIMC1.6 Neutral 1 1.6 0.063 - 0.006 TIMC2 Neutral 2 2.2 0.087 - 0.008 TIMC2.4 Neutral 2 2.4 0.094 - 0.008 TIMC3 Neutral 4 3.1 0.122 - 0.008 TIMC4 Neutral 4 4.1 0.161 - 0.010 TIMC4.8 Neutral 4 4.8 0.189 - 0.011 TIMC5 Neutral 4 5.1 0.200 - 0.012 TIMC6 Neutral 6 6.4 0.250 - 0.014 TIMC1.66R Right 1 1.6 0.063 6 0.006 TIMC26R Right 2 2.2 0.087 6 0.008 TIMC2.46R Right 2 2.4 0.094 6 0.008 TIMC36R Right 4 3.1 0.122 6 0.008 TIMC46R Right 4 4.1 0.161 6 0.010 TIMC4.86R Right 4 4.8 0.189 6 0.011 TIMC56R Right 4 5.1 0.200 6 0.012 TIMC66R Right 6 6.4 0.250 6 0.014 Use holders TH101, THR/L201, THR/L211, THR/L619, see pages 1331 - 1336. 1292
