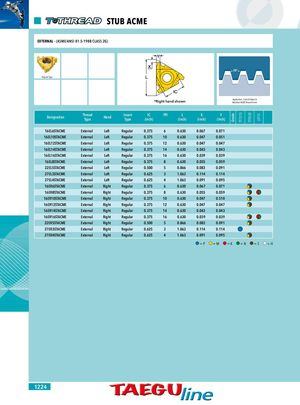

Grade TT7010 TT9030 UF10 STUB ACME EXTERNAL - (ASME/ANSI B1.5-1988 CLASS 2G) Regular Type *Right hand shown Application: Control Valves &Modified ACME Thread Forms Designation ThreadType Hand InsertType IC TPI L X Y(inch)(inch)(inch)(inch) 16EL6STACME External Left Regular 0.375 6 0.630 0.067 0.071 16EL10STACME External Left Regular 0.375 10 0.630 0.047 0.051 16EL12STACME External Left Regular 0.375 12 0.630 0.047 0.047 16EL14STACME External Left Regular 0.375 14 0.630 0.043 0.043 16EL16STACME External Left Regular 0.375 16 0.630 0.039 0.039 16EL8STACME External Left Regular 0.375 8 0.630 0.055 0.059 22EL5STACME External Left Regular 0.500 5 0.866 0.083 0.091 27EL3STACME External Left Regular 0.625 3 1.063 0.114 0.114 27EL4STACME External Left Regular 0.625 4 1.063 0.091 0.095 16ER6STACME External Right Regular 0.375 6 0.630 0.067 0.071 16ER8STACME External Right Regular 0.375 8 0.630 0.055 0.059 16ER10STACME External Right Regular 0.375 10 0.630 0.047 0.510 16ER12STACME External Right Regular 0.375 12 0.630 0.047 0.047 16ER14STACME External Right Regular 0.375 14 0.630 0.043 0.043 16ER16STACME External Right Regular 0.375 16 0.630 0.039 0.039 22ER5STACME External Right Regular 0.500 5 0.866 0.083 0.091 27ER3STACME External Right Regular 0.625 3 1.063 0.114 0.114 27ER4STACME External Right Regular 0.625 4 1.063 0.091 0.095 =P =M =K =N =S =H 1224
