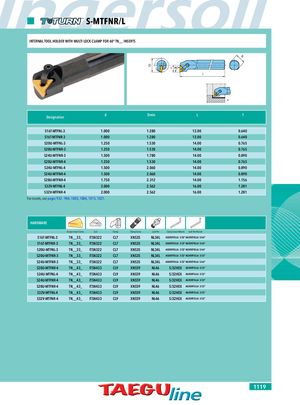

S-MTFNR/L INPATERRTNSAELRTIOESOL HOLDER WITH MULTI LOCK CLAMP FOR 60° TN__ INSERTS d D f l Designation d Dmin L f S16T-MTFNL-3 1.000 1.280 12.00 0.640 S16T-MTFNR-3 1.000 1.280 12.00 0.640 S20U-MTFNL-3 1.250 1.530 14.00 0.765 S20U-MTFNR-3 1.250 1.530 14.00 0.765 S24U-MTFNR-3 1.500 1.780 14.00 0.890 S20U-MTFNR-4 1.250 1.530 14.00 0.765 S24U-MTFNL-4 1.500 2.060 14.00 0.890 S24U-MTFNR-4 1.500 2.060 14.00 0.890 S28U-MTFNR-4 1.750 2.312 14.00 1.156 S32V-MTFNL-4 2.000 2.562 16.00 1.281 S32V-MTFNR-4 2.000 2.562 16.00 1.281 For inserts, see pages 932 - 944, 1003, 1004, 1015, 1021. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench S16T-MTFNL-3 TN__33_ ITSN322 CL7 XNS35 NL34L AG00093LLA 3/32"AG00078LLA 5/64" S16T-MTFNR-3 TN__33_ ITSN322 CL7 XNS35 NL34L AG00093LLA 3/32"AG00078LLA 5/64" S20U-MTFNL-3 TN__33_ ITSN322 CL7 XNS35 NL34L AG00093LLA 3/32"AG00078LLA 5/64" S20U-MTFNR-3 TN__33_ ITSN322 CL7 XNS35 NL34L AG00093LLA 3/32"AG00093LLA 3/32" S24U-MTFNR-3 TN__33_ ITSN322 CL7 XNS35 NL34L AG00093LLA 3/32"AG00078LLA 5/64" S20U-MTFNR-4 TN__43_ ITSN433 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" S24U-MTFNL-4 TN__43_ ITSN433 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" S24U-MTFNR-4 TN__43_ ITSN433 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" S28U-MTFNR-4 TN__43_ ITSN433 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" S32V-MTFNL-4 TN__43_ ITSN433 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" S32V-MTFNR-4 TN__43_ ITSN433 CL9 XNS59 NL46 5/32HEX AG00093LLA 3/32" 1119
