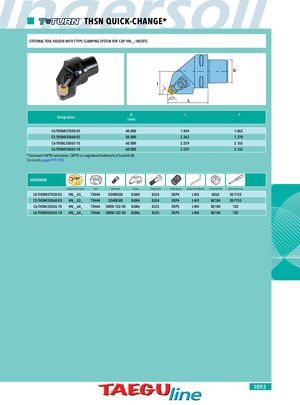

THSN QUICK-CHANGE* EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 120° HN__ INSERTS D f 45° L Designation D l(mm) f C4-THSNR27050-05 40.000 1.969 1.063 C5-THSNR35060-05 50.000 2.362 1.378 C6-THSNL55065-10 60.000 2.559 2.165 C6-THSNR55065-10 60.000 2.559 2.165 ®Coromant CAPTO connection. CAPTO is a registered trademark of Sandvik AB. For inserts, pages 919, 920. HARDWARE Accepts Insert Series Seat Seat Screw Clamp Clamp Screw Clamp Spring Clamp Screw Wrench Coolant Nozzle Seat Screw Driver C4-THSNR27050-05 HN__43_ TSH44 SO40050I DLM4 DLS4 DSP4 L-W3 NZ62 DS-T15S C5-THSNR35060-05 HN__43_ TSH44 SO40050I DLM4 DLS4 DSP4 L-W3 NZ104 DS-T15S C6-THSNL55065-10 HN__64_ TSH64 SM50-122-50 DLM6 DLS5 DSP5 L-W4 NZ104 T20 C6-THSNR55065-10 HN__64_ TSH64 SM50-122-50 DLM6 DLS5 DSP5 L-W4 NZ104 T20 1093
