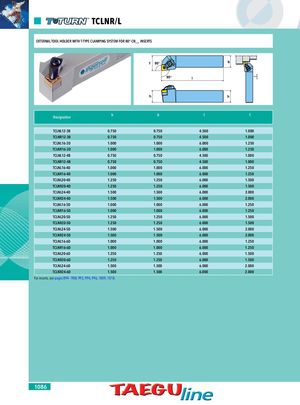

TCLNR/L EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM FOR 80° CN__ INSERTS f 95° b 95° l h h Designation h b l f TCLNL12-3B 0.750 0.750 4.500 1.000 TCLNR12-3B 0.750 0.750 4.500 1.000 TCLNL16-3D 1.000 1.000 6.000 1.250 TCLNR16-3D 1.000 1.000 6.000 1.250 TCLNL12-4B 0.750 0.750 4.500 1.000 TCLNR12-4B 0.750 0.750 4.500 1.000 TCLNL16-4D 1.000 1.000 6.000 1.250 TCLNR16-4D 1.000 1.000 6.000 1.250 TCLNL20-4D 1.250 1.250 6.000 1.500 TCLNR20-4D 1.250 1.250 6.000 1.500 TCLNL24-4D 1.500 1.500 6.000 2.000 TCLNR24-4D 1.500 1.500 6.000 2.000 TCLNL16-5D 1.000 1.000 6.000 1.250 TCLNR16-5D 1.000 1.000 6.000 1.250 TCLNL20-5D 1.250 1.250 6.000 1.500 TCLNR20-5D 1.250 1.250 6.000 1.500 TCLNL24-5D 1.500 1.500 6.000 2.000 TCLNR24-5D 1.500 1.500 6.000 2.000 TCLNL16-6D 1.000 1.000 6.000 1.250 TCLNR16-6D 1.000 1.000 6.000 1.250 TCLNL20-6D 1.250 1.250 6.000 1.500 TCLNR20-6D 1.250 1.250 6.000 1.500 TCLNL24-6D 1.500 1.500 6.000 2.000 TCLNR24-6D 1.500 1.500 6.000 2.000 For inserts, see pages 894 - 908, 993, 994, 996, 1009, 1018. 1086
