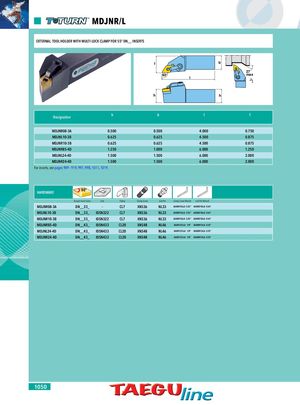

MDJNR/L EXTERNAL TOOL HOLDER WITH MULTI LOCK CLAMP FOR 55° DN__ INSERTS f b 27˚ 93° max l h h Designation h b l f MDJNR08-3A 0.500 0.500 4.000 0.750 MDJNL10-3B 0.625 0.625 4.500 0.875 MDJNR10-3B 0.625 0.625 4.500 0.875 MDJNR85-4D 1.250 1.000 6.000 1.250 MDJNL24-4D 1.500 1.500 6.000 2.000 MDJNR24-4D 1.500 1.500 6.000 2.000 For inserts, see pages 909 - 919, 997, 998, 1011, 1019. HARDWARE Accepts Insert Series Seat Clamp Clamp Screw Lock Pin Clamp Screw Wrench Lock Pin Wrench MDJNR08-3A DN__33_ - CL7 XNS36 NL33 AG00093LLA 3/32" AG00078LLA 5/64" MDJNL10-3B DN__33_ IDSN322 CL7 XNS36 NL33 AG00093LLA 3/32" AG00078LLA 5/64" MDJNR10-3B DN__33_ IDSN322 CL7 XNS36 NL33 AG00093LLA 3/32" AG00078LLA 5/64" MDJNR85-4D DN__43_ IDSN433 CL20 XNS48 NL46 AG00125LLA 1/8" AG00093LLA 3/32" MDJNL24-4D DN__43_ IDSN433 CL20 XNS48 NL46 AG00125LLA 1/8" AG00093LLA 3/32" MDJNR24-4D DN__43_ IDSN433 CL20 XNS48 NL46 AG00125LLA 1/8" AG00093LLA 3/32" 1050
