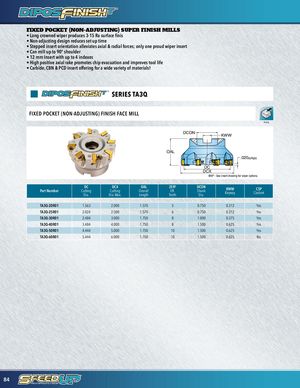

FIXED POCKET (NON-ADJUSTING) SUPER FINISH MILLS • Long crowned wiper produces 3-15 Ra surface finis • Non-adjusting design reduces set up time • Stepped insert orientation alleviates axial & radial forces; only one proud wiper insert • Can mill up to 90° shoulder • 12 mm Insert with up to 4 indexes • High positive axial rake promotes chip evacuation and improves tool life • Carbide, CBN & PCD insert offering for a wide variety of materials! SERIES TA3Q FIXED POCKET (NON-ADJUSTING) FINISH FACE MILL Facing DCON KWW OAL .020APMX DC DCX WEP - See insert drawing for wiper options. Part Number DC DCX OALCuttingCuttingOverallDia.Dia. Max.LengthZEFFEff.TeethDCONShankDia.KWWCSPKeywayCoolant TA3Q-20R01 1.563 2.000 1.570 5 0.750 0.312 Yes TA3Q-25R01 2.024 2.500 1.570 6 0.750 0.312 Yes TA3Q-30R01 2.484 3.000 1.750 8 1.000 0.375 Yes TA3Q-40R01 3.484 4.000 1.750 8 1.500 0.625 Yes TA3Q-50R01 4.444 5.000 1.750 10 1.500 0.625 Yes TA3Q-60R01 5.444 6.000 1.750 10 1.500 0.625 No 84
