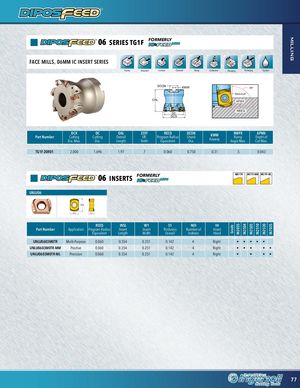

Каталог Ingersoll новинки 2021 - страница 77

milling 06 SERIES TG1F FORMERLY FACE MILLS, 06MM IC INSERT SERIES Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant DCON KWW 90° Backdraft OAL APMX DC REEQ DCX DCX DC OALPart NumberCuttingCuttingOverallDia. Max.Dia.LengthZEFFREEQ DCONEff.Program RadiusShankTeethEquivalentDia.KWWKeywayRMPX APMXRampDepth ofAngle Max.Cut Max. TG1F-20R01 2.000 1.696 1.97 7 0.060 0.750 0.31 .5 0.043 06 INSERTS FORMERLY MOTR MOTR-MM MOTR-ML UNLU06 INSL W1 S1 REEQ INSL W1 S1 NOI IH Part Number Application Program Radius Insert Insert Thickness Number of Insert Equivalent Length Width Overall Indexes Hand UNLU0603M0TR Multi-Purpose 0.060 0.354 0.251 0.142 4 Right • • • • • UNLU0603M0TR-MM Positive 0.060 0.354 0.251 0.142 4 Right • • • • • UNLU0603M0TR-ML Precision 0.060 0.354 0.251 0.142 4 Right • • • • 77 Grade IN2035 IN2504 IN2505 IN2510 IN2530 IN7035
