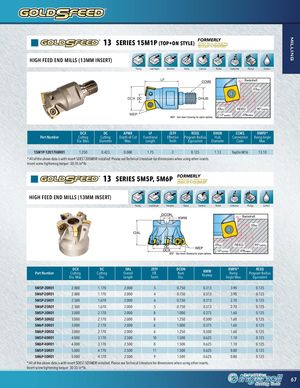

milling 13 SERIES 15M1P (TOP•ON STYLE) FORMERLY HIGH FEED END MILLS (13MM INSERT) Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant LF CCMS Backdraft .03BS DCX DC DHUB .03BS REEQ 90°KAPR2 WEP WEP - See insert drawing for wiper options. 12°KAPR1 .078APMX1 DCX DC APMX LF ZEFF REEQ DHUB CCMS RMPX* Part Number Cutting Cutting Depth of Cut Functional Effective Program Radius Hub Connection Ramp Angle Dia. Max. Diameter Max. Length Teeth Equivalent Diameter Code Max. 15M1P-12017X8R01 1.250 0.423 0.088 1.75 2 0.125 1.13 TopOn M16 13.10 * All of the above data is with insert SDES1305MDR installed. Please see Technical Literature for dimensions when using other inserts. Insert screw tightening torque: 30-35 in*lb. 13 SERIES 5M5P, 5M6P FORMERLY HIGH FEED END MILLS (13MM INSERT) Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant DCON KWW Backdraft .03BS OAL DCDCX WEPWEP - See insert drawing for wiper options..03BS12°KAPR1REEQ90°KAPR2.078APMX1 DCX DC OALPart NumberCuttingCuttingOverallDia. Max.Dia.LengthZEFFEff.TeethDCONBoreDia. KWWKeyway RMPX* REEQRampProgram RadiusAngle Max.Equivalent 5M5P-20R01 2.000 1.170 2.000 5 0.750 0.313 3.90 0.125 5M6P-20R01 2.000 1.170 2.000 4 0.750 0.313 3.90 0.125 5M5P-25R01 2.500 1.670 2.000 6 0.750 0.313 2.70 0.125 5M6P-25R01 2.500 1.670 2.000 5 0.750 0.313 2.70 0.125 5M5P-30R01 3.000 2.170 2.000 8 1.000 0.375 1.60 0.125 5M5P-30R02 3.000 2.170 2.000 8 1.250 0.500 1.60 0.125 5M6P-30R01 3.000 2.170 2.000 6 1.000 0.375 1.60 0.125 5M6P-30R02 3.000 2.170 2.000 6 1.250 0.500 1.60 0.125 5M5P-40R01 4.000 3.170 2.500 10 1.500 0.625 1.10 0.125 5M6P-40R01 4.000 3.170 2.500 8 1.500 0.625 1.10 0.125 5M5P-50R01 5.000 4.170 2.500 11 1.500 0.625 0.80 0.125 5M6P-50R01 5.000 4.170 2.500 9 1.500 0.625 0.80 0.125 * All of the above data is with insert SDES1305MDR installed. Please see Technical Literature for dimensions when using other inserts. Insert screw tightening torque: 30-35 in*lb. 67
