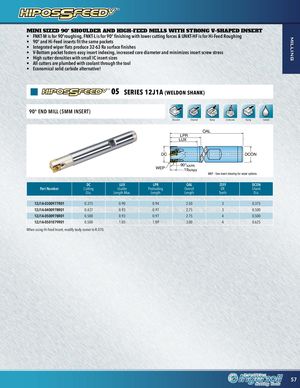

milling MINI SIZED 90º SHOULDER AND HIGH-FEED MILLS WITH STRONG V-SHAPED INSERT • FNKT-M is for 90°roughing, FNKT-L is for 90° finishing with lower cutting forces & UNKT-HF is for Hi-Feed Roughing • 90° and Hi-Feed inserts fit the same pockets • Integrated wiper flats produce 32-63 Ra surface finishes • V-Bottom pocket fosters easy insert indexing, increased core diameter and minimizes insert screw stress • High cutter densities with small IC insert sizes • All cutters are plumbed with coolant through the tool • Economical solid carbide alternative! 05 SERIES 12J1A (WELDON SHANK) 90° END MILL (5MM INSERT) Shoulder Channel Ramp Corkscrew Facing Coolant OAL LPR LUX DC DCON WEP 90°KAPR.19APMX WEP - See insert drawing for wiper options. DC LUX LPR OAL ZEFF DCON Part Number Cutting Usable Protruding Overall Eff. Shank Dia. Length Max. Length Length Teeth Dia. 12J1A-0300977R01 0.375 0.90 0.94 2.50 3 0.375 12J1A-0400978R01 0.437 0.93 0.97 2.75 3 0.500 12J1A-0500978R01 0.500 0.93 0.97 2.75 4 0.500 12J1A-0501079R01 0.500 1.05 1.09 3.00 4 0.625 When using Hi-Feed Insert, modify body corner to R.070. 57
