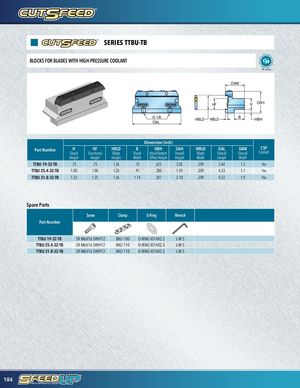

SERIES TTBU-TB BLOCKS FOR BLADES WITH HIGH-PRESSURE COOLANT HP Coolant OAW HF H OAH G 1/8OAL HBLD WBLD B HBH Dimension (inch) Part Number H HF HBLD B HBH OAH WBLD OAL OAW CSPShankFunctionalBladeShankHead BottomOverallBladeOverallOverallCoolant Height Height Height Width Offset Height Height Width Length Width TTBU 19-32-TB .75 .75 1.26 .75 .625 2.02 .209 3.44 1.5 Yes TTBU 25.4-32-TB 1.00 1.00 1.26 .91 .300 1.95 .209 4.33 1.7 Yes TTBU 31.8-32-TB 1.25 1.25 1.26 1.14 .207 2.10 .209 4.33 1.9 Yes Spare Parts Screw Clamp O-Ring Wrench Part Number TTBU 19-32-TB SR M6X16 DIN912 BKU 100 O-RING ID14X2.5 L-W 5 TTBU 25.4-32-TB SR M6X16 DIN912 BKU 110 O-RING ID14X2.5 L-W 5 TTBU 31.8-32-TB SR M6X16 DIN912 BKU 110 O-RING ID14X2.5 L-W 5 184
