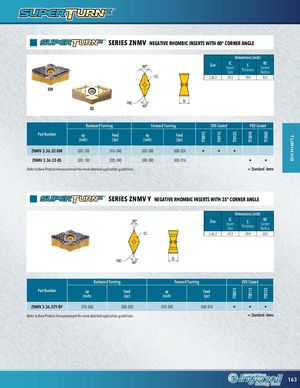

TT8015 TT8115 TT8125TT8015 TT3010TT8115 TT3020TT8125 turning SERIES ZNMV NEGATIVE RHOMBIC INSERTS WITH 80º CORNER ANGLE Dimensions (inch) 80º Size ICInsertSize SThickness RECornerRadius IC 3.36.3 .413 .394 .031 BM BS RE 45º S Backward Turning Forward Turning CVD Coated PVD Coated Part Number ap Feed ap Feed (inch) (ipr) (inch) (ipr) ZNMV 3.36.32-BM .020-.100 .016-.040 .020-.080 .008-.024 • • • ZNMV 3.36.32-BS .020-.100 .020-.040 .040-.080 .008-.016 • • Refer to New Product Announcement for more detailed application guidelines. •: Standard items SERIES ZNMV Y NEGATIVE RHOMBIC INSERTS WITH 35º CORNER ANGLE Dimensions (inch) 35º Size ICInsertSize SThickness RECornerRadius IC 3.36.3 .413 .394 .031 RE 45º S Backward Turning Forward Turning CVD Coated Part Number ap Feed ap Feed (inch) (ipr) (inch) (ipr) ZNMV 3.36.32Y-BF .010-.060 .008-.020 .010-.040 .008-.014 • • • Refer to New Product Announcement for more detailed application guidelines. •: Standard items 163
