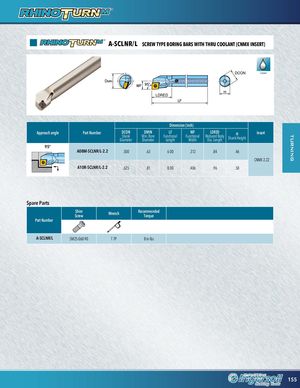

turning A-SCLNR/L SCREW TYPE BORING BARS WITH THRU COOLANT (CNMX INSERT) DCON Coolant DMIN WF 95° DCON LDRED H LF WF 95° LDRED H LF Dimension (inch) Approach angle Part Number DCONShankDiameterDMINMin. BoreDiameterLFFunctionalLengthWFFunctionalWidthLDREDReduced BodyDia. LengthHShank HeightInsert 95° A08M-SCLNR/L-2.2 .500 .63 6.00 .312 .84 .46 CNMX 2.22 A10R-SCLNR/L-2.2 .625 .81 8.00 .406 .96 .58 Spare Parts ShimScrew Wrench RecommendedTorque Part Number A-SCLNR/L SM25-060-90 T 7P 8 in-lbs 155
