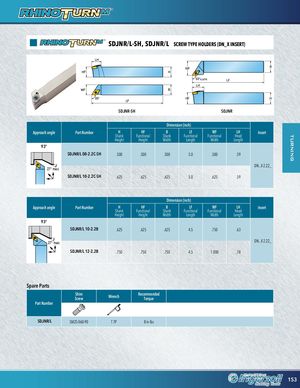

turning SDJNR/L-SH, SDJNR/L SCREW TYPE HOLDERS (DN_X INSERT) LH LH H WF B HF H 93°KAPR LF LH WBF B 93° LF 93° LF HF H SDJNR-SH SDJNR Dimension (inch) Approach angle PartBNumber H HF B LF WF LH Insert Shank Functional Shank Functional Functional Head Height Height Width Length Width Length 93° LF 93° LH SDJNR/L 08-2.2C-SH .500 .500 .500 5.0 .500 .59 27° max. 27° max. H 27° max. DN...X 2.22_ SDJNR/L 10-2.2C-SH .625 .625 .625 5.0 .625 .59 Dimension (inch) Approach angle Part Number H HF B LF WF LH Insert Shank Functional Shank Functional Functional Head Height Height Width Length Width Length 93° SDJNR/L 10-2.2B .625 .625 .625 4.5 .750 .63 27° max. DN...X 2.22_ SDJNR/L 12-2.2B .750 .750 .750 4.5 1.000 .78 Spare Parts ShimScrew Wrench RecommendedTorque Part Number SDJNR/L SM25-060-90 T 7P 8 in-lbs 153
