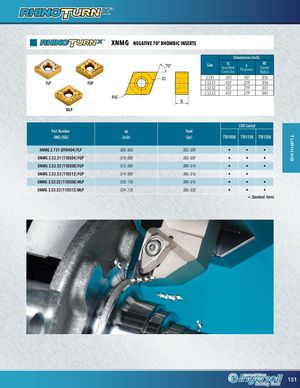

turning XNMG NEGATIVE 70º RHOMBIC INSERTS Dimensions (inch) 70° Size ICInscribedCircle Dia.SThicknessRECornerRadius IC 2.731 .343 .187 .016 FLP FGP 3.53.51 .437 .219 .016 3.53.52 .437 .219 .031 3.53.53 .437 .219 .047 RE S MLP CVD Coated Part Number ap Feed ANSI (ISO) (inch) (ipr) TT8105B TT8115B TT8125B XNMG 2.731 (090404) FLP .008-.060 .003-.009 • • • XNMG 3.53.51 (110504) FGP .010-.080 .003-.009 • • • XNMG 3.53.52 (110508) FGP .012-.080 .004-.014 • • • XNMG 3.53.53 (110512) FGP .014-.080 .006-.016 • • XNMG 3.53.52 (110508) MLP .020-.138 .004-.016 • • • XNMG 3.53.53 (110512) MLP .024-.138 .006-.020 • • • •: Standard items 151
