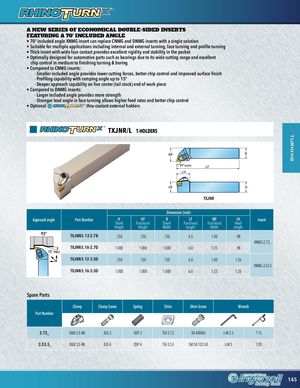

turning A NEW SERIES OF ECONOMICAL DOUBLE-SIDED INSERTS FEATURING A 70° INCLUDED ANGLE • 70° included angle XNMG insert can replace CNMG and DNMG inserts with a single solution • Suitable for multiple applications including internal and external turning, face turning and profile turning • Thick insert with wide face contact provides excellent rigidity and stability in the pocket • Optimally designed for automotive parts such as bearings due to its wide cutting range and excellent chip control in medium to finishing turning & boring • Compared to CNMG inserts: - Smaller included angle provides lower cutting forces, better chip control and improved surface finish - Profiling capability with ramping angle up to 15° - Deeper approach capability on live center (tail stock) end of work piece • Compared to DNMG inserts: - Larger included angle provides more strength - Stronger lead angle in face turning allows higher feed rates and better chip control • Optional thru-coolant external holders TXJNR/L T-HOLDERS WF B WF B 93°KAPR LFLH 93°KAPR LF HF H LH TXJNR HF H Dimension (inch) Approach angle Part Number HShank HFFunctional BShank LFFunctional15° mFauxn.WctiFonal LHHead Insert Height Height Width Length Width Length 93° TXJNR/L 12-2.7B .750 .750 .750 4.5 1.00 .98 XNMG 2.73_ TXJNR/L 16-2.7D 1.000 1.000 1.000 6.0 1.25 .98 15° max. TXJNR/L 12-3.5D .750 .750 .750 6.0 1.00 1.26 XNMG 3.53.5 TXJNR/L 16-3.5D 1.000 1.000 1.000 6.0 1.25 1.26 Spare Parts Clamp Clamp Screw Spring Shim Shim Screw Wrench Part Number 2.73_ DLM 2.5-NX DLS 3 DSP 3 TSX 2.73 SO 40085I L-W 2.5 T 15 3.53.5_ DLM 3.5-NX DLS 4 DSP 4 TSX 3.53 SM 50-122-50 L-W 3 T 20 145
