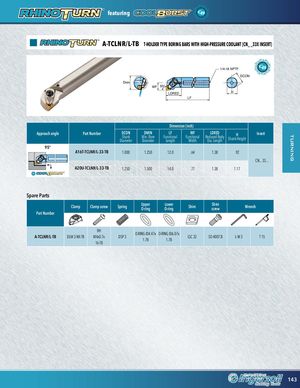

turning featuring A-TCLNR/L-TB T-HOLDER TYPE BORING BARS WITH HIGH-PRESSURE COOLANT (CN_ _33X INSERT) 1/4-18 NPTF DCON DMIN WF 95° LDRED H LF 1/4-18 NPTF DCON Dimension (inch) WF 95° Approach angle Part NumberLDREDH DCONShankDiameterDMINMin. BoreDiameterLFFunctionalLengthWFFunctionalWidthLDREDReduced BodyDia. LengthHShank HeightInsert LF 95° A16T-TCLNR/L-33-TB 1.000 1.250 12.0 .64 1.38 .92 CN... 33... A20U-TCLNR/L-33-TB 1.250 1.500 14.0 .77 1.38 1.17 Spare Parts Clamp Clamp screw Spring UpperO-ring LowerO-ring Shim Shimscrew Wrench Part Number BH A-TCLNR/L-TB DLM 3-NX-TB M4x0.7x16-TB DSP 3 O-RING ID4.47x O-RING ID6.07x1.781.78LSC 32 SO 40073I L-W 3 T 15 143
