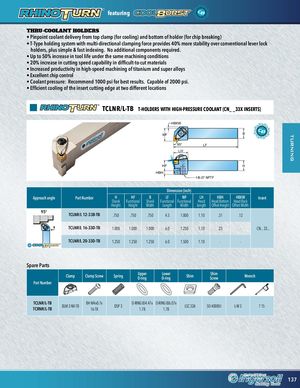

turning featuring THRU-COOLANT HOLDERS • Pinpoint coolant delivery from top clamp (for cooling) and bottom of holder (for chip breaking) • T-Type holding system with multi-directional clamping force provides 40% more stability over conventional lever lock holders, plus simple & fast indexing. No additional components required. • Up to 50% increase in tool life under the same machining conditions • 20% increase in cutting speed capability in difficult-to-cut materials • Increased productivity in high-speed machining of titanium and super alloys • Excellent chip control • Coolant pressure: Recommend 1000 psi for best results. Capable of 2000 psi. • Efficient cooling of the insert cutting edge at two different locations TCLNR/L-TB T-HOLDERS WITH HIGH-PRESSURE COOLANT (CN_ _33X INSERTS) HBKW WF B 95° LF LH HF H HBH 1/8-27 NPTF Dimension (inch) Approach angle Part Number H HF B LF WF LH HBH HBKW Insert Shank Functional Shank Functional Functional Head Head Bottom Head Back Height Height Width Length Width Length Offset Height Offset Width 95° TCLNR/L 12-33B-TB .750 .750 .750 4.5 1.000 1.10 .31 .12 B TCLNR/L 16-33D-TB 1.000 1.000 1.000 6.0 1.250 1.10 .25 - CN... 33... TCLNR/L 20-33D-TB 1.250 1.250 1.250 6.0 1.500 1.10 - - H Spare Parts Clamp Clamp Screw Spring UpperO-ring LowerO-ring Shim ShimScrew Wrench Part Number TCLNR/L-TBTCRNR/L-TBDLM 3-NX-TBBH M4x0.7x16-TB DSP 3 O-RING ID4.47x O-RING ID6.07x1.781.78LSC 32A SO 40085I L-W 3 T 15 137
