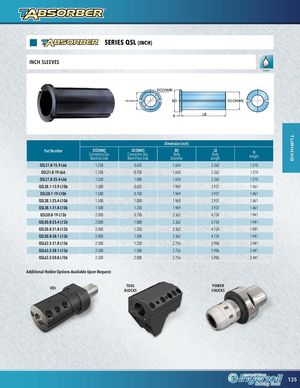

turning D(oivreecrt8SdxeEDeR)pIhEoSleQmSacLh(inINinCgHw)ithout the pilot hole INCH SLEEVES Coolant DCONMS (Flat surface) H BD DCONWS 6 LB Dimension (inch) Part Number DCONMS DCONWS BD LBConnection Dia.Connection Dia.BodyBodyMachine SideWork Piece SideDiameterLengthHHeight QSL31.8-15.9-L66 1.250 0.625 1.654 2.362 1.210 QSL31.8-19-L66 1.250 0.750 1.654 2.362 1.210 QSL31.8-25.4-L66 1.250 1.000 1.654 2.362 1.210    QSL38.1-15.9-L106 1.500 0.625 1.969 3.937 1.461    QSL38.1-19-L106 1.500 0.750 1.969 3.937 1.461    QSL38.1-25.4-L106 1.500 1.000 1.969 3.937 1.461    QSL38.1-31.8-L106 1.500 1.250 1.969 3.937 1.461   QSL50.8-19-L126 2.000 0.750 2.362 4.724 1.941   QSL50.8-25.4-L126 2.000 1.000 2.362 4.724 1.941   QSL50.8-31.8-L126 2.000 1.250 2.362 4.724 1.941   QSL50.8-38.1-L126 2.000 1.500 2.362 4.724 1.941   QSL63.5-31.8-L156 2.500 1.250 2.756 5.906 2.441   QSL63.5-38.1-L156 2.500 1.500 2.756 5.906 2.441   QSL63.5-50.8-L156 2.500 2.000 2.756 5.906 2.441 Additional Holder Options Available Upon Request: VDI TOOLBLOCKS POWERCHUCKS 135
