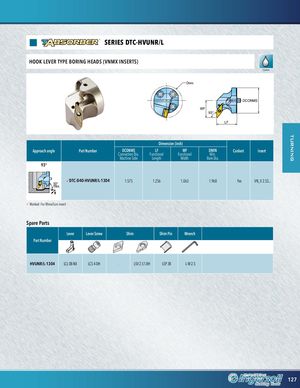

turning D(oivreecrt8SdxeEDeR)pIhEoSleDmTaCch-HiniVngUwNitRho/uLt the pilot hole HOOK LEVER TYPE BORING HEADS (VNMX INSERTS) Coolant DMIN DMIN DCONMS WF 93° DCONMS LF WF 93° LF Dimension (inch) Approach angle Part Number DCONMS LF WF DMIN Coolant Insert Connection Dia. Functional Functional Min. Machine Side Length Width Bore Dia. 93° 5m0a°x. 5m0a°x. DTC-D40-HVUNR/L-1304 1.575 1.256 1.063 1.968 Yes VN_X 2.53...  Marked: For RhinoTurn insert Spare Parts Lever Lever Screw Shim Shim Pin Wrench Part Number HVUNR/L-1304 LCL 08-NX LCS 4-DH - LSV 2.51.8H LSP 3B L-W 2.5 127
