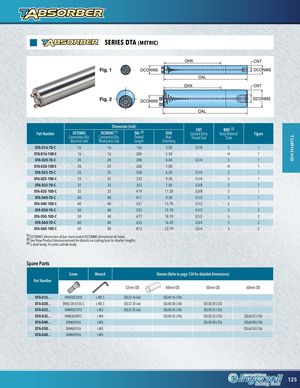

turning D(oivreecrt8SdxeEDeR)pIhEoSleDmTaAch(inMinEgTRwIiCth)out the pilot hole OHX CNT Fig. 1 DCONWS DCONMS OAL OHX CNT Fig. 2 DCONWS DCONMS OAL Dimension (inch)Part NumberDCONMSDCONWS (1)OAL (2) CNT BMC (3)OHXCoolant EntryBody MaterialFigure Connection Dia. Connection Dia. Overall Max. Thread Size Code Machine Side Workpiece Side Length Overhang DTA-D16-7D-C 16 16 156 3.50 G1/8 S 1 DTA-D16-10D-E 16 16 204 5.50 - H 1 DTA-D20-7D-C 20 20 200 4.40 G1/4 S 1 DTA-D20-10D-E 20 20 260 7.00 - H 1 DTA-D25-7D-C 25 25 258 6.20 G1/4 S 1 DTA-D25-10D-C 25 25 333 9.20 G1/4 S 1 DTA-D32-7D-C 32 32 323 7.50 G3/8 S 1 DTA-D32-10D-C 32 32 419 11.20 G3/8 S 1 DTA-D40-7D-C 40 40 411 9.20 G1/2 S 1 DTA-D40-10D-C 40 40 531 13.70 G1/2 S 1 DTA-D50-7D-C 50 40 523 12.70 G1/2 S 2 DTA-D50-10D-C 50 40 673 18.70 G1/2 S 2 DTA-D60-7D-C 60 40 633 16.20 G3/4 S 2 DTA-D60-10D-C 60 40 813 23.70 G3/4 S 2 (1) DCONWS dimension of bar must match DCONMS dimension of head. (2) See New Product Announcement for details on cutting bars to shorter lengths. (3) S-steel body, H-solid carbide body. Spare Parts Screw Wrench Sleeves (Refer to page 134 for detailed dimensions) Part Number 32mm OD 40mm OD 50mm OD 60mm OD DTA-D16… SHM3X0.5X10 L-W2.5 QSL32-16-L66 QSL40-16-L106 - - DTA-D20… SRM3.5XL10-D5.5 L-W2.5 QSL32-20-L66 QSL40-20-L106 QSL50-20-L126 - DTA-D25… SHM4X0.7X12 L-W3 QSL32-25-L66 QSL40-25-L106 QSL50-25-L126 - DTA-D32… SHM5X0.8X12 L-W4 - QSL40-32-L106 QSL50-32-L126 QSL60-32-L156 DTA-D40… SHM6X1X16 L-W5 - - QSL50-40-L126 QSL60-40-L156 DTA-D50… SHM6X1X16 L-W5 - - - QSL60-50-L156 DTA-D60… SHM6X1X16 L-W5 - - - - 125
