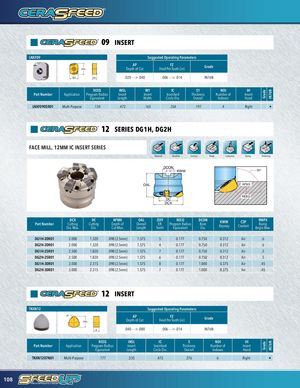

GradeGrade IN76NIN76N 09 INSERT LNXF09 Suggested Operating Parameters INSL AP FZDepth of CutFeed Per Tooth (in)Grade W1 S1 .020 ----> .040 .006 ----> .014 IN76N REEQ INSL W1 IC S1 NOI IH Part Number Application Program Radius Insert Insert Inscribed Thickness Number of Insert Equivalent Length Width Circle Dia. Overall Indexes Hand LNXF0905R01 Multi-Purpose .134 .472 .165 .354 .197 4 Right • 12 SERIES DG1H, DG2H FACE MILL, 12MM IC INSERT SERIES Channel Shoulder Contour Ramp Corkscrew Facing Pocketing DCON KWW 90° OAL APMX DC REEQ DCX Part Number DCX DCCuttingCuttingDia. Max.Dia.APMXDepth ofCut Max.OALZEFF REEQ DCONOverallEff.Program RadiusBoreLengthTeethEquivalentDia.KWWKeywayCSPCoolantRMPXRampAngle Max. DG1H-20R01 2.000 1.320 .098 (2.5mm) 1.575 5 0.177 0.750 0.312 Air .6 DG2H-20R01 2.000 1.320 .098 (2.5mm) 1.575 4 0.177 0.750 0.312 Air .6 DG1H-25R01 2.500 1.820 .098 (2.5mm) 1.575 7 0.177 0.750 0.312 Air .5 DG2H-25R01 2.500 1.820 .098 (2.5mm) 1.575 6 0.177 0.750 0.312 Air .5 DG1H-30R01 3.000 2.315 .098 (2.5mm) 1.575 8 0.177 1.000 0.375 Air .45 DG2H-30R01 3.000 2.315 .098 (2.5mm) 1.575 7 0.177 1.000 0.375 Air .45 12 INSERT TNXN12 Suggested Operating Parameters IC INSL AP FZDepth of CutFeed Per Tooth (in)Grade S .040 ----> .080 .006 ----> .014 IN76N REEQ INSL IC S NOI IH Part Number Application Program Radius Insert Inscribed Thickness Number of Insert Equivalent Length Circle Dia. Overall Indexes Hand TNXN1207N01 Multi-Purpose .177 .535 .472 .276 6 Right • 108
