Общий каталог Harlingen 2024 - страница 9

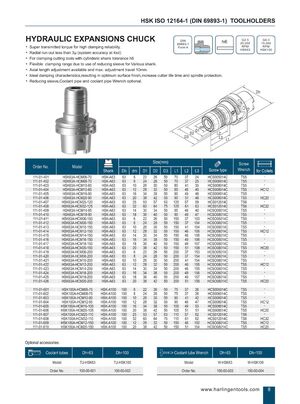

HSK ISO 12164-1 (DIN 69893-1) TOOLHOLDERS HYDRAULIC EXPANSIONS CHUCK • Super transmitted torque for high clamping reliability. • Radial run-out less than 3p (system accuracy at 4xd) • For clamping cutting tools with cylinderic shank tolerance h6 • Flexible clamping range due to use of reducing sleeve for Various shank . DIN 69893 - 1 Form A h6 G 2.5 25,000 RPM G 6.3 15 , 000 RPM HSK 63 HSK 100 • Axial length adjustment available and max. adjustment travel 10mm . • Ideal damping characteristics ,resulting in optimum surface finish ,increase cutter life time and spindle protection. • Reducing sleeve,Coolant pipe and coolant pipe Wrench optional. Order No. 111-01-401 111- 01-402 111-01-403 111-01-404 111-01-405 111-01-406 111-01-407 111-01-408 111-01-409 111-01-410 111-01-411 111-01-412 111-01-413 111-01-414 111-01-415 111-01-416 111-01-417 111-01-418 111-01-419 111-01-420 111-01-421 111-01-422 111-01-423 111-01-424 111-01-425 111-01-426 HSK63A-HCM08-70 HSK63A-HCM10-80 HSK 63A-HCM12-85 HSK63A-HCM16-90 HSK63A-HCM20-90 HSK63A -HCM25-120 HSK63A-HCM32-125 HSK 63A-HCM14-85 HSK63A-HCM18-90 HSK63A -HCM06-150 HSK63A-HCM08-150 HSK63A -HCM10-150 HSK63A -HCM12-150 HSK63A -HCM14-150 HSK63A -HCM16-150 HSK63A -HCM18-150 HSK63A -HCM20-150 HSK63A -HCM06-200 HSK63A-HCM08-200 HSK63A -HCM10-200 HSK63A -HCM12-200 HSK63A -HCM14-200 HSK63A -HCM16-200 HSK63A-HCM18-200 HSK63A -HCM20-200 111-01-601 111- 01-602 111-01-603 111-01-604 111-01-605 111-01-606 111-01-607 111-01-608 111-01-609 111-01-610 HSK100A -HCM06-75 HSK 100A -HCM08-75 HSK 100A -HCM10-90 HSK100A -HCM12-95 HSK100A-HCM16-100 HSK 100A-HCM 20-105 HSK100A-HCM25-110 HSK100 A-HCM32-110 HSK100A-HCM12-150 HSK 100A- HCM 20-150 HSK63A-HCM06-70 Shank HSK- A 63 HSK - A 63 HSK - A 63 HSK- A 63 HSK - A 63 HSK- A 63 HSK - A 63 HSK- A 63 HSK- A 63 HSK - A 63 HSK- A 63 HSK - A 63 HSK - A 63 HSK - A 63 HSK - A 63 HSK - A 63 HSK - A 63 HSK - A 63 HSK - A 63 HSK - A 63 HSK - A 63 HSK- A 63 HSK - A 63 HSK- A 63 HSK - A 63 HSK - A 63 103 104 104 105 105 106 107 108 153 154 154 155 155 156 157 158 HSK -A100 HSK -A100 HSK -A100 HSK -A100 HSK -A100 HSK -A100 HSK -A100 HSK -A 100 HSK -A100 HSK -A 100 100 100 100 100 100 100 100 100 100 100 102 104 HCS008014C HCS008014C HCS008014C HCS008014C HCS012014C HCS012014C HCS008014C HCS008014C HCS005014C HCS006014C HCS008014C HCS008014C HCS008014C HCS008014C HCS008014C HCS008014C HCS005014C HCS006014C HCS008014C HCS008014C HCS008014C HCS008014C HCS008014C HCS008014C TS5 TS5 TS5 TS5 TS6 TS6 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 TS5 HCS005014C HCS006014C HCS008014C HCS008014C HCS008014C HCS008014C HCS012014C HCS012014C HCS008014C HCSQ08014C TS5 TS5 TS5 TS5 TS5 TS5 TS6 TS6 TS5 TS5 HC 12 HC 20 HC32 HC12 HC 20 HC 12 HC 20 HC12 HC 20 HC32 HC12 HC 20 Optional accessories: Coolant tubes Dh=63 Dh=100 Model TU-HSK63 TU-HSK 100 Order No. 100-00-001 100-00- 002 Dh=63 Dh=100 Model W-HSK63 W-HSK 100 Order No. 100-00-003 100- 00-004 Coolant tube Wrench www. harlingentools . com 8
