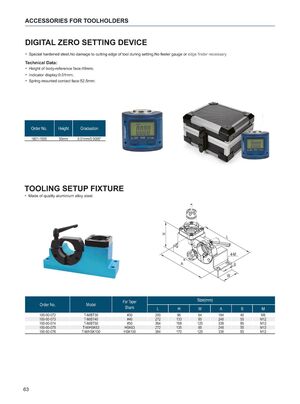

ACCESSORIES FOR TOOLHOLDERS DIGITAL ZERO SETTING DEVICE • Special hardened steel,No damage to cutting edge of tool during setting;No feeler gauge or edge finder necessary Technical Data : • Height of body-reference face:49mm; • Indicator display : 0.01mm; • Spring-mounted contact face:52.5mm; Order No. Height Graduation 1801-1005 50mm 0.01mm /0.0005" I O ZERO IP65 ' mm in TOOLING SETUP FIXTURE • Made of quality aluminium alloy steel. R i i 63 Order No. Model For Taper Shank 100-00-072 100-00-073 100-00-074 100-00-075 100-00-076 T-M/ BT30 T-M/BT40 T-M/BT50 T-M/HSK63 T-M/HSK 100 #30 #40 #50 HSK63 HSK 100 Size(mm) B 200 272 364 272 364 96 133 168 135 170 64 85 125 85 125 184 248 338 248 338 40 55 85 55 85 M8 M12 M12 M12 M12
