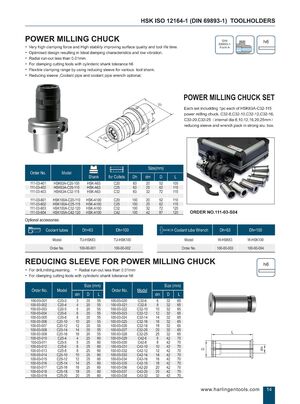

HSK ISO 12164-1 (DIN 69893-1) TOOLHOLDERS POWER MILLING CHUCK DIN 69893 -1 Form A • Very high clamping force and High stability improving surface quality and tool life time. • Optimised design resulting in Ideal damping characteristics and low vibration. • Radial run-out less than 0.01mm. h6 • For clamping cutting tools with cylinderic shank tolerance h6 • Flexible clamping range by using reducing sleeve for various tool shank. • Reducing sleeve Coolant pipe and coolant pipe wrench optional. . POWER MILLING CHUCK SET Each set includding 1pc each of HSK63A -C 32-115 power milling chuck , C32-8,C32-10 ,C 32-12,C32-16 , C32- 20 C32-25 ( internal dia:8 ,10 ,12,16 , 20,25mm ) reducing sleeve and wrench, pack in strong alu. box . . 111-03-401 111-03-402 111-03-403 HSK63A-C20-105 HSK63A -C25-110 HSK63A-C32-115 HSK-A 63 HSK-A 63 HSK-A 63 C 20 C25 C32 63 63 63 20 25 32 52 62 72 105 110 115 111-03- 601 111-03-602 111-03-603 111-03-604 HSK100A-C20-110 HSK100A-C25-115 HSK100A-C32-120 HSK100A-C42-120 HSK -A100 HSK -A100 HSK -A100 HSK - A100 C 20 C25 C32 C42 100 100 100 100 20 25 32 42 52 62 72 87 110 115 120 120 ORDER N0.111-03-S04 Optional accessories: Coolant tubes Dh=63 Dh=100 Model TU-HSK63 TU-HSK 100 Order No. 100-00-001 100-00- 002 Dh=63 Dh=100 Model W-HSK63 W-HSK 100 Order No. 100-00-003 100- 00-004 Coolant tube Wrench REDUCING SLEEVE FOR POWER MILLING CHUCK h6 • For drill,milling, reaming . • Radial run-out less than 0.01mm • For clamping cutting tools with cylinderic shank tolerance h6 Size (mm) Size (mm) Order No. Model Order No. Model 100-03-001 100-03 -002 100- 03 -003 100-03 -004 100-03-005 100- 03-006 100- 03 -007 100- 03 -008 100- 03 -009 100- 03 -010 100-03-011 100-03-012 100-03 -013 100- 03 -014 100- 03 -015 100- 03-016 100- 03 -017 100- 03 -018 100- 03 -019 C20-3 C 20-4 C20-5 C 20-6 C 20-8 C20-10 C20-12 C20-14 C20-16 C 25-4 C 25-5 C 25-6 C 25-8 C25-10 C25-12 C25-14 C 25-16 C 25-18 C25-20 100-03-020 100-03-021 100-03-022 100-03-023 100-03-024 100-03-025 100-03- 026 100-03-027 100-03- 028 100-03- 029 100-03-030 100-03-031 100-03-032 100-03- 033 100-03-034 100-03-035 100-03-036 100-03-037 100-03- 038 C32-6 C32-8 C32-10 C32-12 C32-14 C32-16 C32-18 C32-20 C32-25 C42-6 C42-8 C42-10 C42-12 C42-14 C42-16 C42-18 C42-20 C42-25 C42-32 L "" V o www. harlingentools . com E o 14
