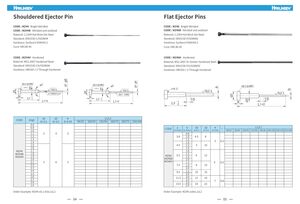

Shouldered Ejector Pin Flat Ejector Pins CODE : MZ44 Bright Nitrided CODE : MZ44B Nitrided and oxidized CODE : MZ46 Bright Nitrided CODE : MZ46B Nitrided and oxidized Standard: DIN1530-C/ISO8694 Standard: DIN1530-F/ISO8693 Material: 1.2344 Hot Work Die Steel Material: 1.2344 Hot Work Die Steel Hardness: Surface≥950HV0.3 Hardness: Surface≥950HV0.3 Core: HRC40-45 Core: HRC40-45 CODE : MZ44H Hardened CODE : MZ46H Hardened Standard: DIN1530-CH/ISO8694 Standard: DIN1530-FH/ISO8693 Material: WS1.2067 Hardened Steel Material: WS1.2067 Or Similar Hardened Steel Hardness: HRC60+/-2 Through Hardened CODE MZ44 MZ44B MZ44H d1g6 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 d3 0/-0.1 2 d2 0/-0.2 4 Hardness: HRC60+/-2 Through Hardened K 0/-0.05 80/35 100/50 L1/L2 125/50 160/75 200/75 250/100 CODE 2 a 3.8 4.5 3 6 Order Example: MZ44-d1 x d3xL1xL2 MZ46 MZ46B MZ46H 3 5.5 7.5 9.5 11.5 15.5 04 b 0/-0.015 0/-0.015 0.8 1.0 1.2 1.0 1.2 1.5 1.0 1.2 1.5 2.0 1.2 1.5 2.0 1.5 2.0 2.0 2.5 2.0 2.5 d3 0/-0.1 4.2 d2 0/-0.2 8 5 10 6 12 8 14 12 18 10 16 Order Example: MZ46-axbxL1xL2 0/-0.05 K r 3 0.3 5 0.5 7 0.8 60/30 16 22 05 80/40 100/50 L1/L2 125/60 160/80 200/100 250/125 315/160
