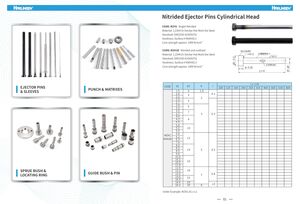

Nitrided Ejector Pins Cylindrical Head CODE: MZ41 Bright Nitrided Material: 1.2344 Or Similar Hot Work Die Steel Standard: DIN1530-A/ISO6751 Hardness: Surface≥950HV0.3 Core strength approx. 1400 N/mm² CODE: MZ41B Nitrided and oxidized Material: 1.2344 Or Similar Hot Work Die Steel Standard: DIN1530-A/ISO6751 Hardness: Surface≥950HV0.3 Core strength approx. 1400 N/mm² EJECTOR PINS & SLEEVES PUNCH & MATRIXES CODE MZ41 MZ41B SPRUE BUSH & LOCATING RING GUIDE BUSH & PIN d1 1.5 2.0 2.2 2.5 2.7 3.0 3.2 3.5 3.7 4.0 4.2 4.5 5.0 5.2 5.5 6.0 6.2 6.5 7.0 8.0 8.2 8.5 9.0 10.0 10.2 10.5 11.0 12.0 12.2 12.5 14.0 16.0 18.0 20.0 d2 3 4 5 K 1.5 2 r 0.2 100 125 6 7 8 3 0.3 5 0.5 7 0.8 8 1.0 10 12 14 16 18 22 24 26 Order Example: MZ41-d1 x L1 01 160 200 L1 +2/0 250 315 400 500 630 800
