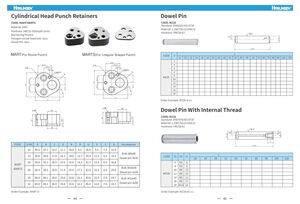

Cylindrical Head Punch Retainers Dowel Pin CODE: MZ25 Standard: DIN6325/ISO 8734 Material: 1.2067/SUJ2/100Cr6 Hardness: HRC58-62 CODE: MART/MARTS Material: S45C Hardness: HRC55-58(Depth 1mm) Blackening Process Hexagon socket head bolt: 2pcs Dowel Pin: 2pcs CODE MZ25 d 3 4 8 10 12 14 16 18 20 24 28 32 L 36 40 45 50 55 60 70 80 90 100 120 5 6 8 10 12 14 16 20 Order Example: MZ25-d x L Dowel Pin With Internal Thread CODE: MZ26 Standard: DIN7979/ISO 8735 Material: 1.2067/SUJ2/100Cr6 Hardness: HRC58-62 CODE D H6 10 13 MART MARTS A 44.5 50.8 B 43.7 50.0 C 14.0 17.0 G 11.1 14.3 K 19.0 19.0 R 9.5 12.7 U 26.9 29.9 X 9.5 12.0 Y 7.5 6.5 S 12.0 15.2 16 54.0 53.2 20.0 15.9 19.0 14.3 31.7 13.5 6.0 16.8 20 60.3 59.5 24.0 17.4 19.0 17.5 33.5 16.5 5.0 20.0 25 69.9 69.1 29.0 19.8 23.8 22.2 40.6 22.0 7.0 24.7 32 69.9 Order Example: MART-D 69.1 36.0 19.8 23.8 44 22.2 40.6 22.0 7.0 24.7 Accessories Bolt-M8x40 Dowel pin-6x30 Bolt-M10x40 Dowel pin-6x30 Bolt-M12x40 Dowel pin-6x30 CODE d1 MZ26 10 12 14 6 8 d2 t1 M6 M6 M8 10 10 12 M4 M5 6 8 20 24 28 L 32 16 M8 12 20 M10 16 Order Example: MZ26-d1 x L 45 40 50 60 80 100 120
