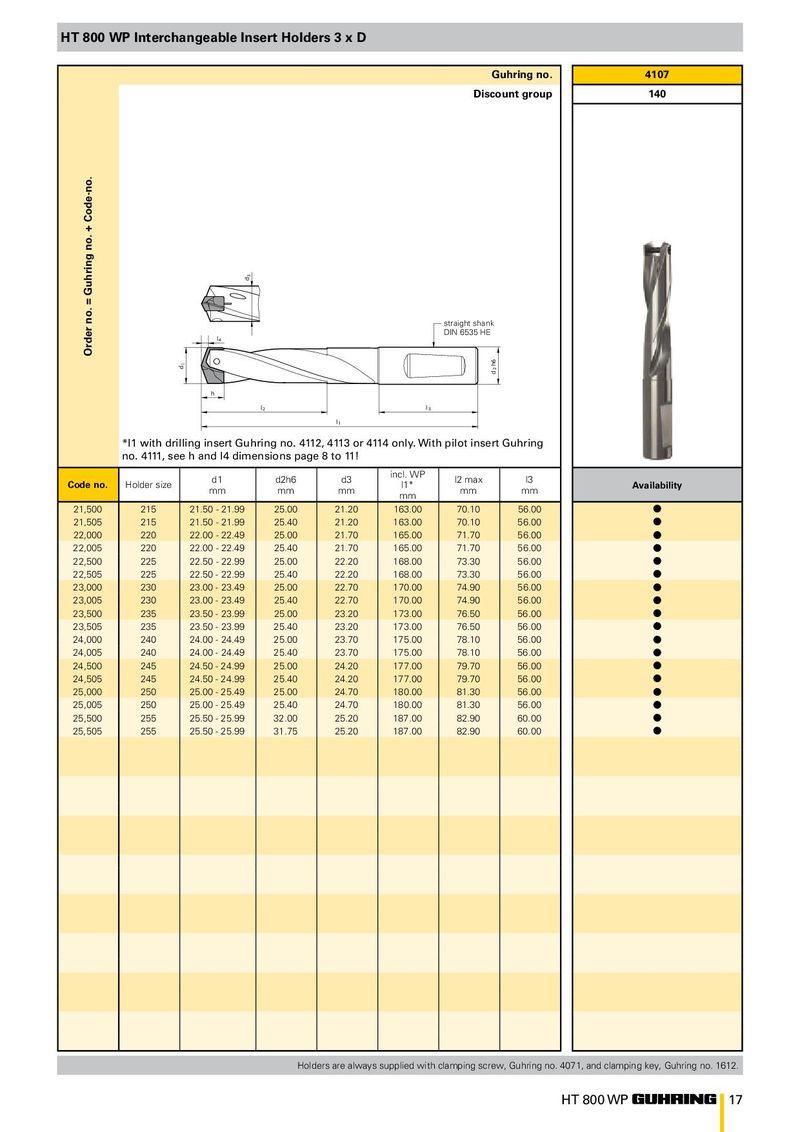

HT 800 WP Interchangeable Insert Holders 3 x D Guhring no. 4107 Discount group 140 3 d straight shank Zylinderschaft DIN 6535-HE DIN 6535 HE l 4 Order no. = Guhring no. + Code-no. 1 d h6 2 d h l 2 l 3 l 1 *l1 with drilling insert Guhring no. 4112, 4113 or 4114 only. With pilot insert Guhring no. 4111, see h and l4 dimensions page 8 to 11! incl. WP d1 d2h6 d3 l2 max l3 Code no. Holder size l1* Availability mm mm mm mm mm mm 21,500 215 21.50 - 21.99 25.00 21.20 163.00 70.10 56.00 l 21,505 215 21.50 - 21.99 25.40 21.20 163.00 70.10 56.00 l 22,000 220 22.00 - 22.49 25.00 21.70 165.00 71.70 56.00 l 22,005 220 22.00 - 22.49 25.40 21.70 165.00 71.70 56.00 l 22,500 225 22.50 - 22.99 25.00 22.20 168.00 73.30 56.00 l 22,505 225 22.50 - 22.99 25.40 22.20 168.00 73.30 56.00 l 23,000 230 23.00 - 23.49 25.00 22.70 170.00 74.90 56.00 l 23,005 230 23.00 - 23.49 25.40 22.70 170.00 74.90 56.00 l 23,500 235 23.50 - 23.99 25.00 23.20 173.00 76.50 56.00 l 23,505 235 23.50 - 23.99 25.40 23.20 173.00 76.50 56.00 l 24,000 240 24.00 - 24.49 25.00 23.70 175.00 78.10 56.00 l 24,005 240 24.00 - 24.49 25.40 23.70 175.00 78.10 56.00 l 24,500 245 24.50 - 24.99 25.00 24.20 177.00 79.70 56.00 l 24,505 245 24.50 - 24.99 25.40 24.20 177.00 79.70 56.00 l 25,000 250 25.00 - 25.49 25.00 24.70 180.00 81.30 56.00 l 25,005 250 25.00 - 25.49 25.40 24.70 180.00 81.30 56.00 l 25,500 255 25.50 - 25.99 32.00 25.20 187.00 82.90 60.00 l 25,505 255 25.50 - 25.99 31.75 25.20 187.00 82.90 60.00 l Holders are always supplied with clamping screw, Guhring no. 4071, and clamping key, Guhring no. 1612. HT 800 WP 17
