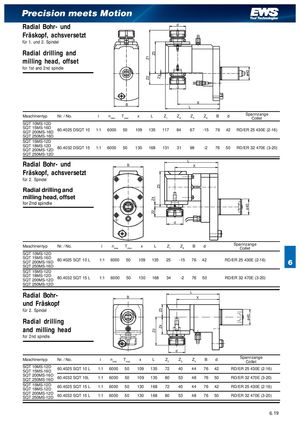

Z1Z2 Z3Z4Z2Z2 Z4Z3Z3Z4 ø40ø40 Precision meets Motion Radial Bohr- und d Fräskopf, achsversetzt für 1. und 2. Spindel Radial drilling and milling head, offset for 1st and 2nd spindle d B XL Maschinentyp Nr. / No. i nmax Tmax x L Z1 Z2 Z3 Z4 B d SpannzangeCollet SQT 10MS-12D SQT 15MS-16DSQT 200MS-16D80.4025 DSQT 101:1 6000 50 109 135 117 84 67 -15 76 42 RD/ER 25 430E (2-16) SQT 250MS-16D SQT 15MS-12D SQT 18MS-12DSQT 200MS-12D80.4032 DSQT 151:1 6000 50 130 168 131 31 98 -2 76 50 RD/ER 32 470E (3-20) SQT 250MS-12D Radial Bohr- und B L X Fräskopf, achsversetzt für 2. Spindel Radial drilling and milling head, offset for 2nd spindle d Maschinentyp Nr. / No. i nmax Tmax x L Z1 Z4 B d SpannzangeCollet SQT 10MS-12D SQT 15MS-16DSQT 200MS-16D80.4025 SQT 10 L 1:1 6000 50 109 135 25 -15 76 42 RD/ER 25 430E (2-16) 6 SQT 250MS-16D SQT 15MS-12D SQT 18MS-12DSQT 200MS-12D80.4032 SQT 15 L 1:1 6000 50 130 168 34 -2 76 50 RD/ER 32 470E (3-20) SQT 250MS-12D Radial Bohr- LB X und Fräskopf für 2. Spindel Radial drilling and milling head for 2nd spindle d Maschinentyp Nr. / No. i nmax Tmax x L Z2 Z3 Z4 B d SpannzangeCollet SQT 10MS-12DSQT 15MS-16D60.4025 SQT 10 L 1:1 6000 50 109 135 72 40 44 76 42 RD/ER 25 430E (2-16) SQT 200MS-16DSQT 250MS-16D60.4032 SQT 10L1:1 6000 50 109 135 80 53 48 76 50 RD/ER 32 470E (3-20) SQT 15MS-12DSQT 18MS-12D60.4025 SQT 15 L 1:1 6000 50 130 168 72 40 44 76 42 RD/ER 25 430E (2-16) SQT 200MS-12DSQT 250MS-12D60.4032 SQT 15 L1:1 6000 50 130 168 80 53 48 76 50 RD/ER 32 470E (3-20) 6. 19
