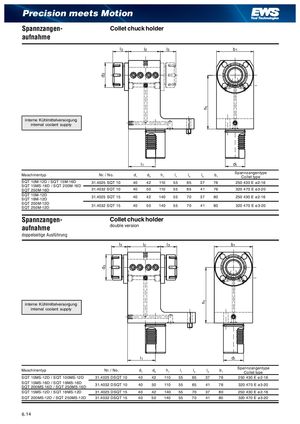

d3d3 h1h1 Precision meets Motion Spannzangen- Collet chuck holder aufnahme l3 l2 l3 b1 interne Kühlmittelversorgung internal coolant supply l1 d1 Maschinentyp Nr. / No. d1 d3 h1 l1 l2 l3 b1 SpannzangentypeCollet type SQT 10M-12D / SQT 15M-16D 31.4025 SQT 10 40 42 110 55 65 37 76 250 430 E ø2-16 SQT 15MS-16D / SQT 200M-16D SQT 250M-16D 31.4032 SQT 10 40 50 110 55 65 41 76 320 470 E ø3-20 SQT 15M-12DSQT 18M-12D 31.4025 SQT 15 40 42 140 55 70 37 80 250 430 E ø2-16 SQT 200M-12DSQT 250M-12D 31.4032 SQT 15 40 50 140 55 70 41 80 320 470 E ø3-20 Spannzangen- Collet chuck holder aufnahme double version doppelseitige Ausführung l3 l2 l3 b1 interne Kühlmittelversorgung internal coolant supply l1 d1 Maschinentyp Nr. / No. d1 d3 h1 l1 l2 l3 b1 SpannzangentypeCollet type SQT 10MS-12D / SQT 100MS-12D 31.4025 DSQT 10 40 42 110 55 65 37 76 250 430 E ø2-16 SQT 15MS-16D / SQT 18MS-16DSQT 200MS-16D / SQT 250MS-16D31.4032 DSQT 1040 50 110 55 65 41 76 320 470 E ø3-20 SQT 15MS-12D / SQT 18MS-12D 31.4025 DSQT 15 40 42 140 55 70 37 80 250 430 E ø2-16 SQT 200MS-12D / SQT 250MS-12D 31.4032 DSQT 15 40 50 140 55 70 41 80 320 470 E ø3-20 6. 14
