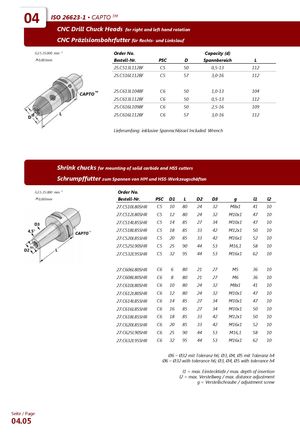

04 ISO 26623-1 ▪ CAPTO TM CNC Drill Chuck Heads for right and left hand rotation CNC Präzisionsbohrfutter für Rechts- und Linkslauf G2.5 25.000 min -1 Order No. Capacity (d)  0,003mm Bestell-Nr. PSC D Spannbereich L 25.C513L112BF C5 50 0,5-13 112 25.C516L112BF C5 57 3,0-16 112 25.C613L104BF C6 50 1,0-13 104 25.C613L112BF C6 50 0,5-13 112 25.C616L109BF C6 50 2,5-16 109 25.C616L112BF C6 57 3,0-16 112 Lieferumfang: inklusive Spannschlüssel Included: Wrench Shrink chucks for mounting of solid carbide and HSS cutters Schrumpffutter zum Spannen von HM und HSS-Werkzeugschäften G2.5 25.000 min -1 Order No.  0,003mm Bestell-Nr. PSC D1 L D2 D3 g l1 l2 27.C510L80SHR C5 10 80 24 32 M8x1 41 10 27.C512L80SHR C5 12 80 24 32 M10x1 47 10 27.C514L85SHR C5 14 85 27 34 M10x1 47 10 27.C518L85SHR C5 18 85 33 42 M12x1 50 10 27.C520L85SHR C5 20 85 33 42 M16x1 52 10 27.C525L90SHR C5 25 90 44 53 M16,1 58 10 27.C532L95SHR C5 32 95 44 53 M16x1 62 10 27.C606L80SHR C6 6 80 21 27 M5 36 10 27.C608L80SHR C6 8 80 21 27 M6 36 10 27.C610L80SHR C6 10 80 24 32 M8x1 41 10 27.C612L80SHR C6 12 80 24 32 M10x1 47 10 27.C614L85SHR C6 14 85 27 34 M10x1 47 10 27.C616L85SHR C6 16 85 27 34 M10x1 50 10 27.C618L85SHR C6 18 85 33 42 M12x1 50 10 27.C620L85SHR C6 20 85 33 42 M16x1 52 10 27.C625L90SHR C6 25 90 44 53 M16,1 58 10 27.C632L95SHR C6 32 95 44 53 M16x1 62 10 Ø6 – Ø32 mit Toleranz h6; Ø3, Ø4, Ø5 mit Toleranz h4 Ø6 – Ø32 with tolerance h6; Ø3, Ø4, Ø5 with tolerance h4 l1 = max. Einstecktiefe / max. depth of insertion l2 = max. Verstellweg / max. distance adjustment g = Verstellschraube / adjustment screw Seite / Page 04.05
