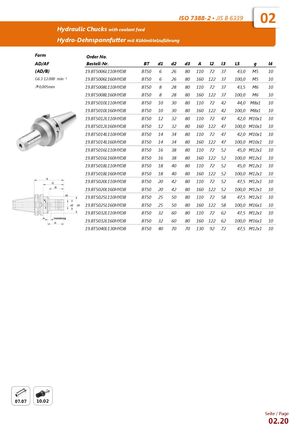

Каталог WSW оправки - страница 50

ISO 7388-2 ▪ JIS B 6339 02 Hydraulic Chucks with coolant feed Hydro-Dehnspannfutter mit Kühlmittelzuführung Form Order No. AD/AF Bestell-Nr. BT d1 d2 d3 A l2 l3 L5 g l4 (AD/B) 19.BT5006L110HYDB BT50 6 26 80 110 72 37 43,0 M5 10 G6.3 12.000 min -1 19.BT5006L160HYDB BT50 6 26 80 160 122 37 100,0 M5 10  0,005mm 19.BT5008L110HYDB BT50 8 28 80 110 72 37 43,5 M6 10 19.BT5008L160HYDB BT50 8 28 80 160 122 37 100,0 M6 10 19.BT5010L110HYDB BT50 10 30 80 110 72 42 44,0 M8x1 10 19.BT5010L160HYDB BT50 10 30 80 160 122 42 100,0 M8x1 10 19.BT5012L110HYDB BT50 12 32 80 110 72 47 42,0 M10x1 10 19.BT5012L160HYDB BT50 12 32 80 160 122 47 100,0 M10x1 10 19.BT5014L110HYDB BT50 14 34 80 110 72 47 42,0 M10x1 10 19.BT5014L160HYDB BT50 14 34 80 160 122 47 100,0 M10x1 10 19.BT5016L110HYDB BT50 16 38 80 110 72 52 45,0 M12x1 10 19.BT5016L160HYDB BT50 16 38 80 160 122 52 100,0 M12x1 10 19.BT5018L110HYDB BT50 18 40 80 110 72 52 45,0 M12x1 10 19.BT5018L160HYDB BT50 18 40 80 160 122 52 100,0 M12x1 10 19.BT5020L110HYDB BT50 20 42 80 110 72 52 47,5 M12x1 10 19.BT5020L160HYDB BT50 20 42 80 160 122 52 100,0 M12x1 10 19.BT5025L110HYDB BT50 25 50 80 110 72 58 47,5 M12x1 10 19.BT5025L160HYDB BT50 25 50 80 160 122 58 100,0 M16x1 10 19.BT5032L110HYDB BT50 32 60 80 110 72 62 47,5 M12x1 10 19.BT5032L160HYDB BT50 32 60 80 160 122 62 100,0 M16x1 10 19.BT5040L130HYDB BT50 40 70 70 130 92 72 47,5 M12x1 10 07.07 Seite / Page 02.20
