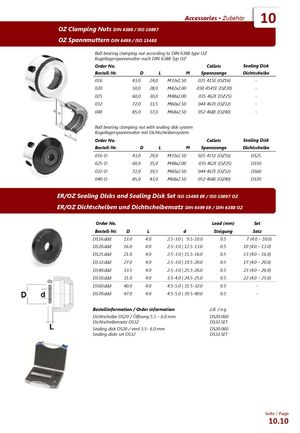

Accessories ▪ Zubehör 10 OZ Clamping Nuts DIN 6388 / ISO 10897 OZ Spannmuttern DIN 6499 / ISO 15488 Ball bearing clamping nut according to DIN 6388 type OZ Kugellagerspannmutter nach DIN 6388 Typ OZ Order No. Collets Sealing Disk Bestell-Nr. D L M Spannzange Dichtscheibe 016 43,0 24,0 M33x1.50 025 415E (OZ16) - 020 50,0 28,0 M42x2.00 030 4541E (OZ20) - 025 60,0 30,0 M48x2.00 035 462E (OZ25) - 032 72,0 33,5 M60x2.50 044 467E (OZ32) - 040 85,0 37,0 M68x2.50 052 468E (OZ40) - Ball bearing clamping nut with sealing disk system Kugellagerspannmutter mit Dichtscheibensystem Order No. Collets Sealing Disk Bestell-Nr. D L M Spannzange Dichtscheibe 016-D 43,0 29,0 M33x1.50 025 415E (OZ16) DS25 025-D 60,0 35,0 M48x2.00 035 462E (OZ25) DS50 032-D 72,0 39,5 M60x2.50 044 467E (OZ32) DS60 040-D 85,0 43,0 M68x2.50 052 468E (OZ40) DS70 ER/OZ Sealing Disks and Sealing Disk Set ISO 15488 ER / ISO 10897 OZ ER/OZ Dichtscheiben und Dichtscheibensatz DIN 6499 ER / DIN 6388 OZ Order No. Lead (mm) Set Bestell-Nr. D L d Steigung Satz DS16.ddd 13.0 4.0 2.5-3.0 | 9.5-10.0 0.5 7 (4.0 – 10.0) DS20.ddd 16.0 4.0 2.5-3.0 | 12.5-13.0 0.5 10 (4.0 – 13.0) DS25.ddd 21.0 4.0 2.5-3.0 | 15.5-16.0 0.5 13 (4.0 – 16.0) DS32.ddd 27.0 4.0 2.5-3.0 | 19.5-20.0 0.5 17 (4.0 – 20.0) DS40.ddd 33.5 4.0 2.5-3.0 | 25.5-26.0 0.5 23 (4.0 – 26.0) DS50.ddd 31.0 4.0 3.5-4.0 | 24.5-25.0 0.5 22 (4.0 – 25.0) DS60.ddd 40.0 4.0 4.5-5.0 | 31.5-32.0 0.5 - DS70.ddd 47.0 4.0 4.5-5.0 | 39.5-40.0 0.5 - Bestellinformation / Order information z.B. / e.g. Dichtscheibe DS20 / Öffnung 5.5 – 6.0 mm DS20.060 Dichtscheibensatz DS32 DS32.SET Sealing disk DS20 / vent 5.5- 6.0 mm DS20.060 Sealing disks set DS32 DS32.SET Seite / Page 10.10
