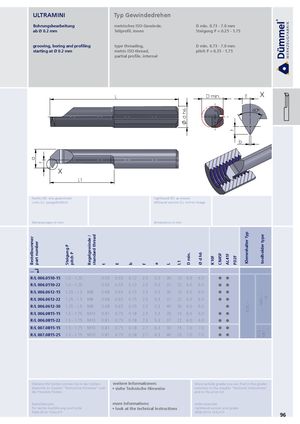

aBestellnummer part number f Steigung P pitch P Regelgewinde / standard thread t E b f a L L1 d h6 D min. Ø d h6 K10F CN45F AL41F tPD2F Klemmhalter Typ676.∙∙∙ toolholder type660.∙∙∙∙∙∙.6670.∙∙∙687.∙∙∙∙∙∙.7 ULTRAMINI Typ Gewindedrehen Bohrungsbearbeitung metrisches ISO-Gewinde, D min. 0.73 - 7.0 mm ab Ø 0.2 mm Teilprofil, innen Steigung P = 0.25 - 1.75 grooving, boring and profiling type threading, D min. 0.73 - 7.0 mm starting at Ø 0.2 mm metric ISO-thread, pitch P = 0.25 - 1.75 partial profile, internal L D min. E X 60° b X L1 Rechts (R): wie gezeichnet righthand (R): as shown Links (L): spiegelbildlich lefthand version (L): mirror image Abmessungen in mm dimensions in mm ... ↴ R/L 006.0510-15 1.0 - 1.25 0.55 0.55 0.12 2.3 5.3 30 15 6.0 6.0   R/L 006.0510-22 1.0 - 1.25 0.55 0.55 0.12 2.3 5.3 37 22 6.0 6.0   R/L 006.0612-15 1.25 - 1.5 M8 0.68 0.65 0.15 2.3 5.3 30 15 6.0 6.0   R/L 006.0612-22 1.25 - 1.5 M8 0.68 0.65 0.15 2.3 5.3 37 22 6.0 6.0   R/L 006.0612-30 1.25 - 1.5 M8 0.68 0.65 0.15 2.3 5.3 45 30 6.0 6.0  R/L 006.0815-15 1.5 - 1.75 M10 0.81 0.75 0.18 2.3 5.3 30 15 6.0 6.0   R/L 006.0815-22 1.5 - 1.75 M10 0.81 0.75 0.18 2.3 5.3 37 22 6.0 6.0   R/L 007.0815-15 1.5 - 1.75 M10 0.81 0.75 0.18 2.7 6.3 30 15 7.0 7.0   R/L 007.0815-25 1.5 - 1.75 M10 0.81 0.75 0.18 2.7 6.3 40 25 7.0 7.0   Weitere HM Sorten können Sie in der Sorten- weitere Informationen: More carbide grades you can find in the grades übersicht im Kapitel "Technische Hinweise" und • siehe Technische Hinweise summary in the chapter "technical instructions" der Preisliste finden. and in the price list. Bestellbeispiel: more informations: order-example: für rechte Ausführung und Sorte • look at the technical instructions righthand version and grade R006.0510-15/AL41F R006.0510-15AL41F 96
