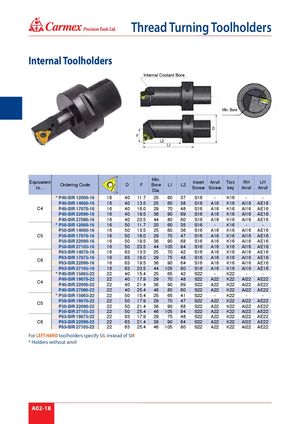

® Thread Turning Toolholders Internal Toolholders Internal Coolant Bore Min. Bore D F L2 L1 Equivalentto...Ordering Code D F Min.BoreL1Dia.L2 Insert Anvil TorxScrewScrewkeyRHAnvilLHAnvil * P40-SIR 12060-16 16 40 11.7 20 60 37 S16 - K16 - - P40-SIR 14060-16 16 40 13.5 25 60 38 S16 A16 K16 AI16 AE16 C4 P40-SIR 17070-16 16 40 16.0 29 70 48 S16 A16 K16 AI16 AE16 P40-SIR 22090-16 16 40 19.5 36 90 69 S16 A16 K16 AI16 AE16 P40-SIR 27080-16 16 40 23.5 44 80 60 S16 A16 K16 AI16 AE16 * P50-SIR 12060-16 16 50 11.7 20 60 35 S16 - K16 - - P50-SIR 14060-16 16 50 13.5 25 60 36 S16 A16 K16 AI16 AE16 C5 P50-SIR 17070-16 16 50 16.0 29 70 47 S16 A16 K16 AI16 AE16 P50-SIR 22090-16 16 50 19.5 36 90 68 S16 A16 K16 AI16 AE16 P50-SIR 27105-16 16 50 23.5 44 105 84 S16 A16 K16 AI16 AE16 P63-SIR 14070-16 16 63 13.5 25 70 42 S16 A16 K16 AI16 AE16 C6 P63-SIR 17075-16 16 63 16.0 29 75 48 S16 A16 K16 AI16 AE16P63-SIR 22090-16166319.5369064S16A16K16AI16AE16 P63-SIR 27105-16 16 63 23.5 44 105 80 S16 A16 K16 AI16 AE16 * P40-SIR 15065-22 22 40 15.4 25 65 42 S22 - K22 - - C4 P40-SIR 19070-22 22 40 17.9 29 70 48 S22 A22 K22 AI22 AE22P40-SIR 22090-22224021.4389069S22A22K22AI22AE22 P40-SIR 27080-22 22 40 25.4 46 80 60 S22 A22 K22 AI22 AE22 * P50-SIR 15065-22 22 50 15.4 25 65 41 S22 - K22 - - C5 P50-SIR 19070-22 22 50 17.9 29 70 47 S22 A22 K22 AI22 AE22P50-SIR 22090-22225021.4389068S22A22K22AI22AE22 P50-SIR 27105-22 22 50 25.4 46 105 84 S22 A22 K22 AI22 AE22 P63-SIR 19075-22 22 63 17.9 29 75 48 S22 A22 K22 AI22 AE22 C6 P63-SIR 22090-22 22 63 21.4 38 90 64 S22 A22 K22 AI22 AE22 P63-SIR 27105-22 22 63 25.4 46 105 80 S22 A22 K22 AI22 AE22 For LEFT HAND toolholders specify SIL instead of SIR * Holders without anvil A02-18
