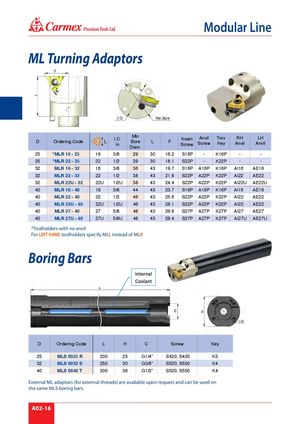

® Modular Line ML Turning Adaptors D Ordering Code L I.C.in MinBoreDiam.L F Insert Anvil TorxScrewScrewKeyRHAnvilLHAnvil 25 *MLR 16 - 25 16 3/8 29 30 16.2 S16P - K16P - - 25 *MLR 22 - 25 22 1/2 29 30 18.1 S22P - K22P - - 32 MLR 16 - 32 16 3/8 36 43 19.7 S16P A16P K16P AI16 AE16 32 MLR 22 - 32 22 1/2 38 43 21.6 S22P A22P K22P AI22 AE22 32 MLR 22U - 32 22U 1/2U 38 43 24.4 S22P A22P K22P AI22U AE22U 40 MLR 16 - 40 16 3/8 44 43 23.7 S16P A16P K16P AI16 AE16 40 MLR 22 - 40 22 1/2 46 43 25.6 S22P A22P K22P AI22 AE22 40 MLR 22U - 40 22U 1/2U 46 43 28.1 S22P A22P K22P AI22 AE22 40 MLR 27 - 40 27 5/8 48 43 26.6 S27P A27P K27P AI27 AE27 40 MLR 27U - 40 27U 5/8U 48 43 29.4 S27P A27P K27P AI27U AE27U *Toolholders with no anvil For LEFT HAND toolholders specify MLL instead of MLR Boring Bars D Ordering Code L H C Screw Key 25 MLS 0025 R 200 23 G1/4” S420, S435 K3 32 MLS 0032 S 250 30 G3/8” S520, S550 K4 40 MLS 0040 T 300 36 G1/2” S520, S550 K4 External ML adaptors (for external threads) are available upon request and can be used on the same MLS boring bars. A02-16
