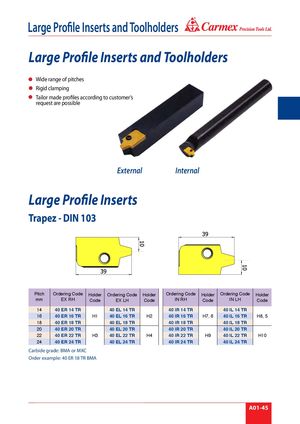

® Large Profile Inserts and Toolholders Large Profile Inserts and Toolholders Wide range of pitches Rigid clamping Tailor made profiles according to customer’s request are possible External Internal Large Profile Inserts Trapez - DIN 103 Pitch Ordering Code Holder Ordering Code Holder Ordering Code Holder Ordering Code Holder mm EX RH Code EX LH Code IN RH Code IN LH Code 14 40 ER 14 TR 40 EL 14 TR 40 IR 14 TR 40 IL 14 TR 16 40 ER 16 TR H1 40 EL 16 TR H2 40 IR 16 TR H7, 6 40 IL 16 TR H8, 5 18 40 ER 18 TR 40 EL 18 TR 40 IR 18 TR 40 IL 18 TR 20 40 ER 20 TR 40 EL 20 TR 40 IR 20 TR 40 IL 20 TR 22 40 ER 22 TR H3 40 EL 22 TR H4 40 IR 22 TR H9 40 IL 22 TR H10 24 40 ER 24 TR 40 EL 24 TR 40 IR 24 TR 40 IL 24 TR Carbide grade: BMA or MXC Order example: 40 ER 18 TR BMA A01-45
