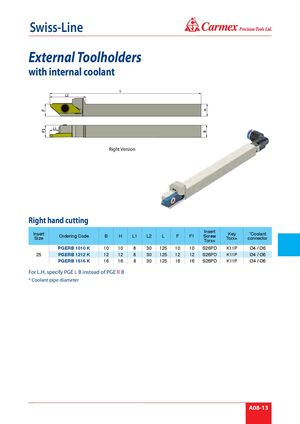

® Swiss-Line External Toolholders with internal coolant Right Version Right hand cutting InsertSize Ordering Code B H L1 L2 L F InsertF1ScrewTorx+KeyTorx+*Coolantconnector PGERB 1010 K 10 10 8 30 125 10 10 S26PD K11P Ø4 / Ø6 25 PGERB 1212 K 12 12 8 30 125 12 12 S26PD K11P Ø4 / Ø6 PGERB 1616 K 16 16 8 30 125 16 16 S26PD K11P Ø4 / Ø6 For L.H, specify PGE L B instead of PGE R B * Coolant pipe diameter A08-13
