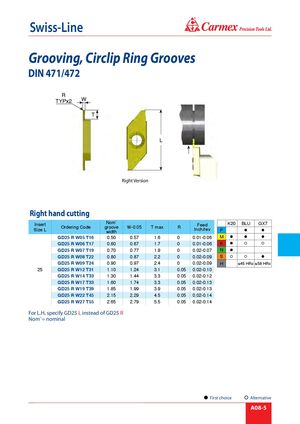

Каталог Carmex общий 2021 - страница 173

® Swiss-Line Grooving, Circlip Ring Grooves DIN 471/472 RTYPx2 W T L Right Version Right hand cutting InsertSize L Ordering Code Nom`grooveW-0.05 T maxwidth R Feed K20 BLU GX7Inch/revP GD25 R W05 T16 0.50 0.57 1.6 0 0.01-0.06 M    GD25 R W06 T17 0.60 0.67 1.7 0 0.01-0.06 K    GD25 R W07 T19 0.70 0.77 1.9 0 0.02-0.07 N  GD25 R W08 T22 0.80 0.87 2.2 0 0.02-0.09 S    GD25 R W09 T24 0.90 0.97 2.4 0 0.02-0.09 H ≤45 HRc ≤58 HRc 25 GD25 R W12 T31 1.10 1.24 3.1 0.05 0.02-0.10 GD25 R W14 T33 1.30 1.44 3.3 0.05 0.02-0.12 GD25 R W17 T33 1.60 1.74 3.3 0.05 0.02-0.13 GD25 R W19 T39 1.85 1.99 3.9 0.05 0.02-0.13 GD25 R W22 T45 2.15 2.29 4.5 0.05 0.02-0.14 GD25 R W27 T55 2.65 2.79 5.5 0.05 0.02-0.14 For L.H, specify GD25 L instead of GD25 R Nom`= nominal First choice Alternative A08-5
