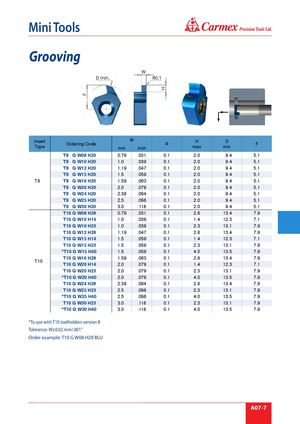

F H ® Mini Tools Grooving W D min. R0.1 InsertType Ordering Code W Rmminch H Dmaxmin F T8 G W08 H20 0.79 .031 0.1 2.0 9.4 5.1 T8 G W10 H20 1.0 .039 0.1 2.0 9.4 5.1 T8 G W12 H20 1.19 .047 0.1 2.0 9.4 5.1 T8 G W15 H20 1.5 .059 0.1 2.0 9.4 5.1 T8 T8 G W16 H20 1.59 .063 0.1 2.0 9.4 5.1 T8 G W20 H20 2.0 .079 0.1 2.0 9.4 5.1 T8 G W24 H20 2.38 .094 0.1 2.0 9.4 5.1 T8 G W25 H20 2.5 .098 0.1 2.0 9.4 5.1 T8 G W30 H20 3.0 .118 0.1 2.0 9.4 5.1 T10 G W08 H28 0.79 .031 0.1 2.8 13.4 7.9 T10 G W10 H14 1.0 .039 0.1 1.4 12.3 7.1 T10 G W10 H23 1.0 .039 0.1 2.3 13.1 7.9 T10 G W12 H28 1.19 .047 0.1 2.8 13.4 7.9 T10 G W15 H14 1.5 .059 0.1 1.4 12.3 7.1 T10 G W15 H23 1.5 .059 0.1 2.3 13.1 7.9 *T10 G W15 H40 1.5 .059 0.1 4.0 13.5 7.9 T10 T10 G W16 H28T10 G W20 H14 1.59 .063 0.12.0.0790.12.81.4 13.4 7.912.37.1 T10 G W20 H23 2.0 .079 0.1 2.3 13.1 7.9 *T10 G W20 H40 2.0 .079 0.1 4.0 13.5 7.9 T10 G W24 H28 2.38 .094 0.1 2.8 13.4 7.9 T10 G W25 H23 2.5 .098 0.1 2.3 13.1 7.9 *T10 G W25 H40 2.5 .098 0.1 4.0 13.5 7.9 T10 G W30 H23 3.0 .118 0.1 2.3 13.1 7.9 *T10 G W30 H40 3.0 .118 0.1 4.0 13.5 7.9 *To use with T10 toolholders version B Tolerance: W±0.02 mm/.001” Order example: T10 G W08 H28 BLU A07-7
