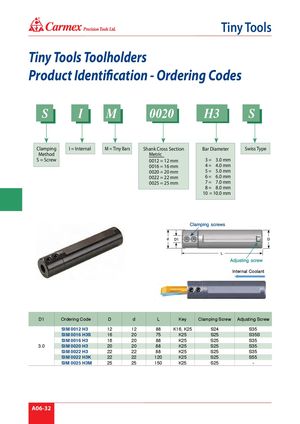

® Tiny Tools Tiny Tools Toolholders Product Identification - Ordering Codes S I M 0020 H3 S Clamping I = Internal M = Tiny Bars Shank Cross Section Bar Diameter Swiss Type Method Metric S = Screw 0012 = 12 mm 3= 3.0 mm 0016 = 16 mm 4= 4.0 mm 0020 = 20 mm 5= 5.0 mm 0022 = 22 mm 6= 6.0 mm 0025 = 25 mm 7= 7.0 mm 8= 8.0 mm 10 = 10.0 mm Internal Coolant D1 Ordering Code D d L Key Clamping Screw Adjusting Screw SIM 0012 H3 12 12 88 K16, K25 S24 S35 SIM 0016 H3S 16 20 75 K25 S25 S35S SIM 0016 H3 16 20 88 K25 S25 S35 3.0 SIM 0020 H3 20 20 88 K25 S25 S35 SIM 0022 H3 22 22 88 K25 S25 S35 SIM 0022 H3K 22 22 120 K25 S25 S55 SIM 0025 H3M 25 25 150 K25 S25 - A06-32
