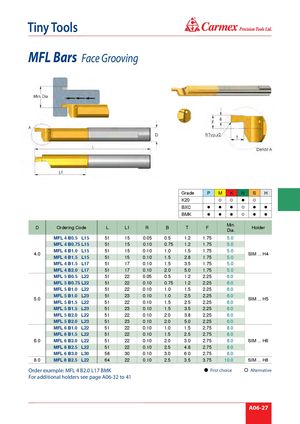

Каталог Carmex общий 2021 - страница 135

® Tiny Tools MFL Bars Face Grooving Grade P M K N S H K20     BXC       BMK       D Ordering Code L L1 R B T F Min.Dia. Holder MFL 4 B0.5 L15 51 15 0.05 0.5 1.2 1.75 5.0 MFL 4 B0.75 L15 51 15 0.10 0.75 1.2 1.75 5.0 4.0 MFL 4 B1.0 L15MFL 4 B1.5L15515115 0.10 1.0 1.5 1.75150.101.52.81.755.05.0SIM ... H4 MFL 4 B1.5 L17 51 17 0.10 1.5 3.5 1.75 5.0 MFL 4 B2.0 L17 51 17 0.10 2.0 5.0 1.75 5.0 MFL 5 B0.5 L22 51 22 0.05 0.5 1.2 2.25 6.0 MFL 5 B0.75 L22 51 22 0.10 0.75 1.2 2.25 6.0 MFL 5 B1.0 L22 51 22 0.10 1.0 1.5 2.25 6.0 5.0 MFL 5 B1.0 L23MFL 5 B1.5L22515123 0.10 1.0 2.5 2.25220.101.52.52.256.06.0SIM ... H5 MFL 5 B1.5 L23 51 23 0.10 1.5 3.5 2.25 6.0 MFL 5 B2.0 L22 51 22 0.10 2.0 3.8 2.25 6.0 MFL 5 B2.0 L23 51 23 0.10 2.0 5.0 2.25 6.0 MFL 6 B1.0 L22 51 22 0.10 1.0 1.5 2.75 8.0 MFL 6 B1.5 L22 51 22 0.10 1.5 2.5 2.75 8.0 6.0 MFL 6 B2.0 L22 51 22 0.10 2.0 3.0 2.75 8.0 SIM ... H6 MFL 6 B2.5 L22 51 22 0.10 2.5 4.8 2.75 8.0 MFL 6 B3.0 L30 58 30 0.10 3.0 6.0 2.75 8.0 8.0 MFL 8 B2.5 L22 64 22 0.10 2.5 3.5 3.75 10.0 SIM ... H8 Order example: MFL 4 B2.0 L17 BMK First choice Alternative For additional holders see page A06-32 to 41 A06-27
