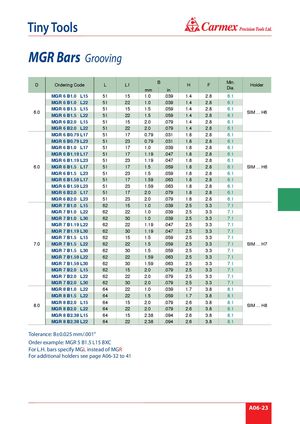

Каталог Carmex общий 2021 - страница 131

® Tiny Tools MGR Bars Grooving D Ordering Code L L1 Bmm in H F Min.Dia. Holder MGR 6 B1.0 L15 51 15 1.0 .039 1.4 2.8 6.1 MGR 6 B1.0 L22 51 22 1.0 .039 1.4 2.8 6.1 6.0 MGR 6 B1.5 L15MGR 6 B1.5L22515115 1.5 .059 1.4 2.8221.5.0591.42.86.16.1SIM ... H6 MGR 6 B2.0 L15 51 15 2.0 .079 1.4 2.8 6.1 MGR 6 B2.0 L22 51 22 2.0 .079 1.4 2.8 6.1 MGR 6 B0.79 L17 51 17 0.79 .031 1.8 2.8 6.1 MGR 6 B0.79 L23 51 23 0.79 .031 1.8 2.8 6.1 MGR 6 B1.0 L17 51 17 1.0 .039 1.8 2.8 6.1 MGR 6 B1.19 L17 51 17 1.19 .047 1.8 2.8 6.1 MGR 6 B1.19 L23 51 23 1.19 .047 1.8 2.8 6.1 6.0 MGR 6 B1.5 L17 51 17 1.5 .059 1.8 2.8 6.1 SIM ... H6 MGR 6 B1.5 L23 51 23 1.5 .059 1.8 2.8 6.1 MGR 6 B1.59 L17 51 17 1.59 .063 1.8 2.8 6.1 MGR 6 B1.59 L23 51 23 1.59 .063 1.8 2.8 6.1 MGR 6 B2.0 L17 51 17 2.0 .079 1.8 2.8 6.1 MGR 6 B2.0 L23 51 23 2.0 .079 1.8 2.8 6.1 MGR 7 B1.0 L15 62 15 1.0 .039 2.5 3.3 7.1 MGR 7 B1.0 L22 62 22 1.0 .039 2.5 3.3 7.1 MGR 7 B1.0 L30 62 30 1.0 .039 2.5 3.3 7.1 MGR 7 B1.19 L22 62 22 1.19 .047 2.5 3.3 7.1 MGR 7 B1.19 L30 62 30 1.19 .047 2.5 3.3 7.1 MGR 7 B1.5 L15 62 15 1.5 .059 2.5 3.3 7.1 7.0 MGR 7 B1.5 L22 62 22 1.5 .059 2.5 3.3 7.1 SIM ... H7 MGR 7 B1.5 L30 62 30 1.5 .059 2.5 3.3 7.1 MGR 7 B1.59 L22 62 22 1.59 .063 2.5 3.3 7.1 MGR 7 B1.59 L30 62 30 1.59 .063 2.5 3.3 7.1 MGR 7 B2.0 L15 62 15 2.0 .079 2.5 3.3 7.1 MGR 7 B2.0 L22 62 22 2.0 .079 2.5 3.3 7.1 MGR 7 B2.0 L30 62 30 2.0 .079 2.5 3.3 7.1 MGR 8 B1.0 L22 64 22 1.0 .039 1.7 3.8 8.1 MGR 8 B1.5 L22 64 22 1.5 .059 1.7 3.8 8.1 8.0 MGR 8 B2.0 L15MGR 8 B2.0L22646415 2.0 .079 2.6 3.8222.0.0792.63.88.18.1SIM ... H8 MGR 8 B2.38 L15 64 15 2.38 .094 2.6 3.8 8.1 MGR 8 B2.38 L22 64 22 2.38 .094 2.6 3.8 8.1 Tolerance: B±0.025 mm/.001” Order example: MGR 5 B1.5 L15 BXC For L.H. bars specify MGL instead of MGR For additional holders see page A06-32 to 41 A06-23
