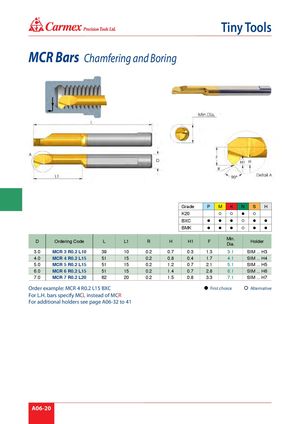

® Tiny Tools MCR Bars Chamfering and Boring Grade P M K N S H K20     BXC       BMK       D Ordering Code L L1 R H H1 F Min.Dia. Holder 3.0 MCR 3 R0.2 L10 39 10 0.2 0.7 0.3 1.3 3.1 SIM ... H3 4.0 MCR 4 R0.2 L15 51 15 0.2 0.8 0.4 1.7 4.1 SIM ... H4 5.0 MCR 5 R0.2 L15 51 15 0.2 1.2 0.7 2.1 5.1 SIM ... H5 6.0 MCR 6 R0.2 L15 51 15 0.2 1.4 0.7 2.8 6.1 SIM ... H6 7.0 MCR 7 R0.2 L20 62 20 0.2 1.5 0.8 3.3 7.1 SIM ... H7 Order example: MCR 4 R0.2 L15 BXC First choice Alternative For L.H. bars specify MCL instead of MCR For additional holders see page A06-32 to 41 A06-20
