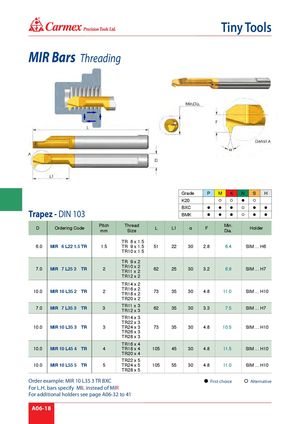

® Tiny Tools MIR Bars Threading Grade P M K N S H K20     BXC       Trapez - DIN 103 BMK       D Ordering Code Pitchmm ThreadSize L L1 α F Min.Dia. Holder TR 8 x 1.5 6.0 MIR 6 L22 1.5 TR 1.5 TR 9 x 1.5 51 22 30 2.8 6.4 SIM ... H6 TR10 x 1.5 TR 9x2 7.0 MIR 7 L25 2 TR 2 TR10 x 2TR11 x 262 25 30 3.2 6.9 SIM ... H7 TR12 x 2 TR14 x 2 10.0 MIR 10 L35 2 TR 2 TR16 x 2TR18 x 273 35 30 4.8 11.0 SIM ... H10 TR20 x 2 7.0 MIR 7 L35 3 TR 3 TR11 x 3TR12 x 362 35 30 3.3 7.5 SIM ... H7 TR14 x 3 TR22 x 3 10.0 MIR 10 L35 3 TR 3 TR24 x 3 73 35 30 4.8 10.5 SIM ... H10 TR26 x 3 TR28 x 3 TR16 x 4 10.0 MIR 10 L45 4 TR 4 TR18 x 4 105 45 30 4.8 11.5 SIM ... H10 TR20 x 4 TR22 x 5 10.0 MIR 10 L55 5 TR 5 TR24 x 5 105 55 30 4.8 11.0 SIM ... H10 TR28 x 5 Order example: MIR 10 L35 3 TR BXC First choice Alternative For L.H. bars specify MIL instead of MIR For additional holders see page A06-32 to 41 A06-18
