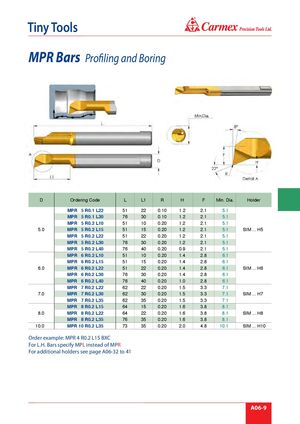

® Tiny Tools MPR Bars Profiling and Boring D Ordering Code L L1 R H F Min. Dia. Holder MPR 5 R0.1 L22 51 22 0.10 1.2 2.1 5.1 MPR 5 R0.1 L30 76 30 0.10 1.2 2.1 5.1 MPR 5 R0.2 L10 51 10 0.20 1.2 2.1 5.1 5.0 MPR 5 R0.2 L15 51 15 0.20 1.2 2.1 5.1 SIM ... H5 MPR 5 R0.2 L22 51 22 0.20 1.2 2.1 5.1 MPR 5 R0.2 L30 76 30 0.20 1.2 2.1 5.1 MPR 5 R0.2 L40 76 40 0.20 0.9 2.1 5.1 MPR 6 R0.2 L10 51 10 0.20 1.4 2.8 6.1 MPR 6 R0.2 L15 51 15 0.20 1.4 2.8 6.1 6.0 MPR 6 R0.2 L22 51 22 0.20 1.4 2.8 6.1 SIM ... H6 MPR 6 R0.2 L30 76 30 0.20 1.4 2.8 6.1 MPR 6 R0.2 L40 76 40 0.20 1.0 2.8 6.1 MPR 7 R0.2 L22 62 22 0.20 1.5 3.3 7.1 7.0 MPR 7 R0.2 L30 62 30 0.20 1.5 3.3 7.1 SIM ... H7 MPR 7 R0.2 L35 62 35 0.20 1.5 3.3 7.1 MPR 8 R0.2 L15 64 15 0.20 1.6 3.8 8.1 8.0 MPR 8 R0.2 L22 64 22 0.20 1.6 3.8 8.1 SIM ... H8 MPR 8 R0.2 L35 76 35 0.20 1.6 3.8 8.1 10.0 MPR 10 R0.2 L35 73 35 0.20 2.0 4.8 10.1 SIM ... H10 Order example: MPR 4 R0.2 L15 BXC For L.H. Bars specify MPL instead of MPR For additional holders see page A06-32 to 41 A06-9
